DTC B10AF-12; Blower Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Blower relay circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to power supply in the blower relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front blower relay malfunction
- Rear blower relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

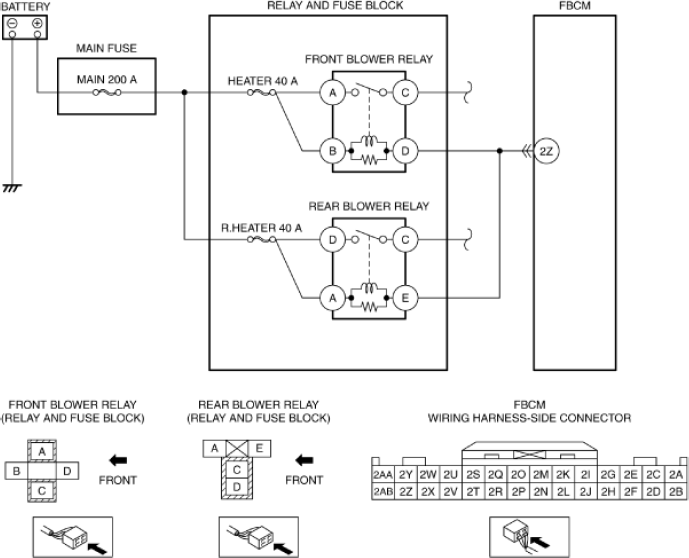

- Short to power supply in wiring harness between the following terminals:
- Front blower relay terminal D-Front body control module (FBCM) terminal 2Z
- Rear blower relay terminal E-Front body control module (FBCM) terminal 2Z
- Front body control module (FBCM) malfunction
|
|
|
