Rear Stabilizer Bracket Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

If the rear stabilizer bracket cannot be installed by hand, install it using a vise.
CAUTION:
- If the rear stabilizer bracket is installed using a vise, it could be deformed.
- Set a cylindrically-shaped object as shown in the figure so that pressure is applied to the rear stabilizer bracket flange, and install the rear stabilizer bracket to the rare stabilizer bushing.

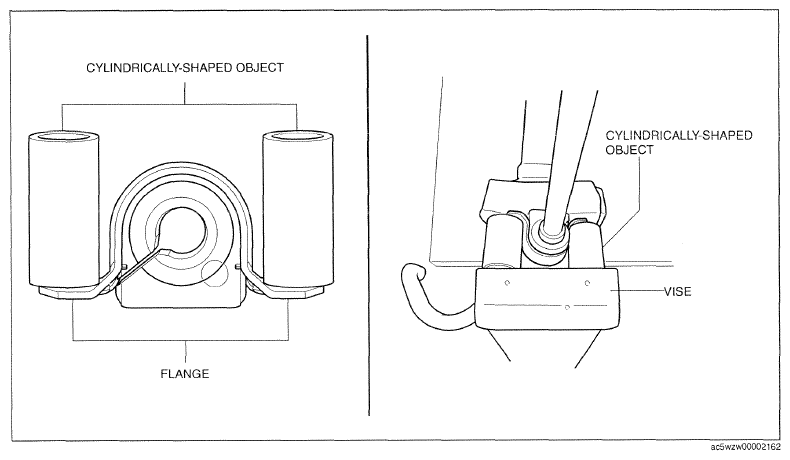

Fig 1: Setting Up A Cylindrically-Shaped Object With Rear Stabilizer Bracket On Vise

Courtesy of MAZDA MOTORS CORP.
