Sail Garnish Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Open the front door.
Fully open the front door glass.
Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the sail garnish clip.

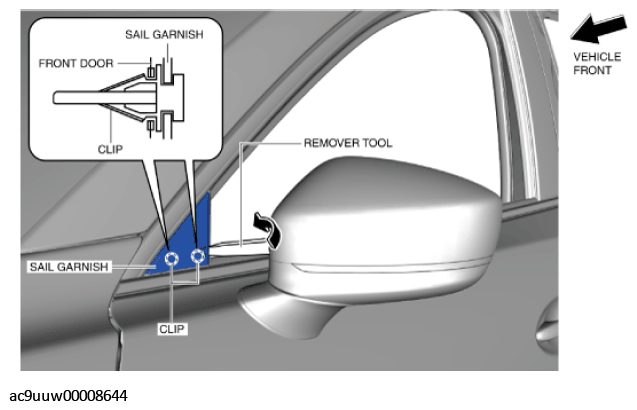

Fig 1: Detaching Sail Garnish Clip
Courtesy of MAZDA MOTORS CORP.
Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the sail garnish clips.

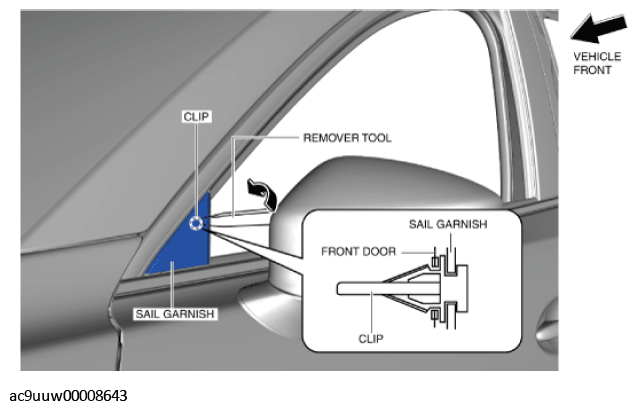

Fig 2: Inserting Remover Tool Into Position
Courtesy of MAZDA MOTORS CORP.
Remove the sail garnish.
Install in the reverse order of removal. (See SAIL GARNISH INSTALLATION NOTE .)
