Plate Removal/Installation: 2WD

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
  2. Remove the bolts and fasteners.

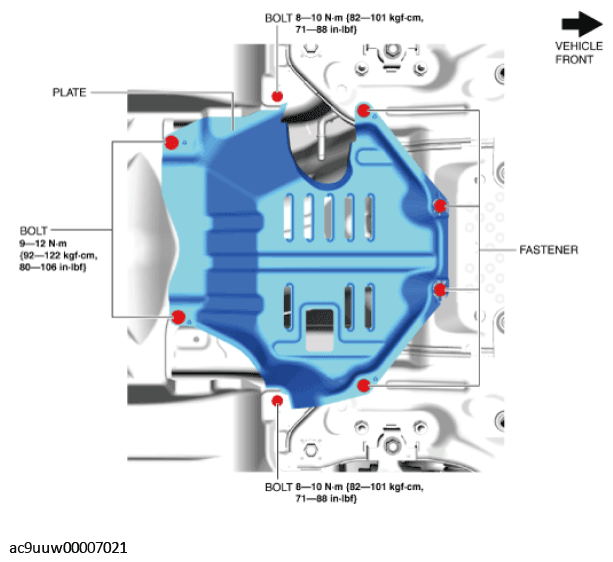

    Fig 1: Removing Plate (2WD) Bolts And Fasteners
    G11431128Courtesy of MAZDA MOTORS CORP.
  3. Remove the plate.
  4. Install in the reverse order of removal.
