Front Splash Shield Removal/Installation: LH

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the steering wheel in the direction of the arrow shown in the figure so that the front side of the tire is facing outward.
    Fig 1: Turning Steering Wheel
    G11431105Courtesy of MAZDA MOTORS CORP.
  2. Remove the fastener from the front mudguard.
    Fig 2: Removing Front Mudguard Fastener
    G11431106Courtesy of MAZDA MOTORS CORP.
  3. Remove the fastener from the front splash shield.
    Fig 3: Removing Front Splash Shield Fastener
    G11431107Courtesy of MAZDA MOTORS CORP.
  4. Remove the fastener from the front splash shield.

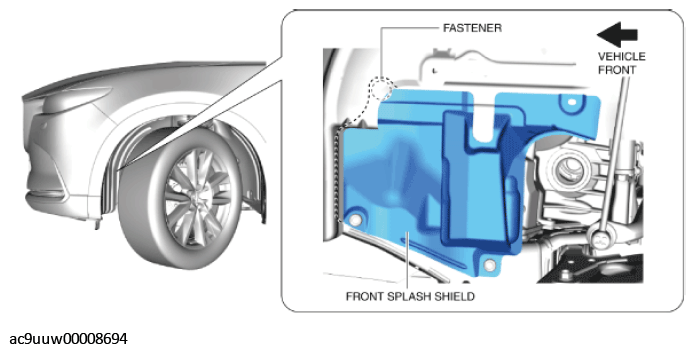

    Fig 4: Removing Front Splash Shield Fastener
    G11431108Courtesy of MAZDA MOTORS CORP.
  5. Remove the fasteners from the front splash shield.
    Fig 5: Removing Front Splash Shield Fasteners
    G11431109Courtesy of MAZDA MOTORS CORP.
  6. Remove the front splash shield.
  7. Install in the reverse order of removal.
