On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System)]

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

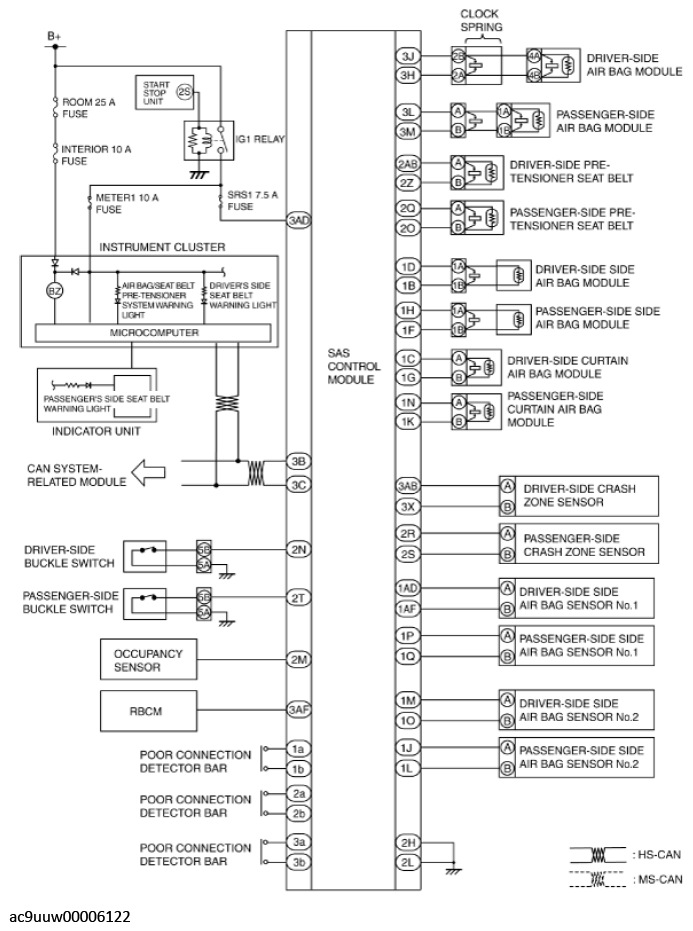

Fig 1: On-Board Diagnostic Wiring Diagram - SAS Control Module (Standard Deployment Control System)

Courtesy of MAZDA MOTORS CORP.

Fig 2: SAS Control Module Harness-Side Connector

Courtesy of MAZDA MOTORS CORP.
