Total Toe-in Adjustment
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

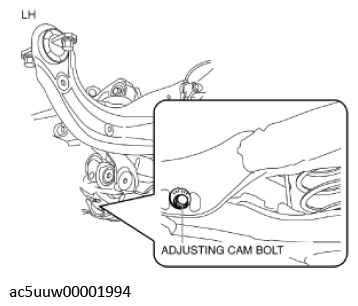

- Loosen the installation nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Left wheel Right wheel Toe-out direction Clockwise Counterclockwise Toe-in direction Counterclockwise Clockwise - Tighten the nut.
Tightening torque
119-145 N.m {13-14 kgf.m, 88-106 ft.lbf}
