Vehicle Rear Side

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

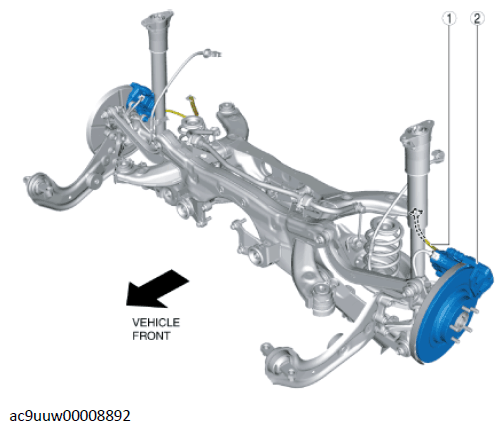

Fig 1: Locating Conventional Brake System Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Brake hose (rear) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION .)
2	Rear brake (disc) (See REAR BRAKE (DISC) INSPECTION .) (See REAR BRAKE (DISC) REMOVAL/INSTALLATION .) (See DISC PAD (REAR) REPLACEMENT .) (See CALIPER (REAR) DISASSEMBLY/ASSEMBLY .)
