Nut Installation Note
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

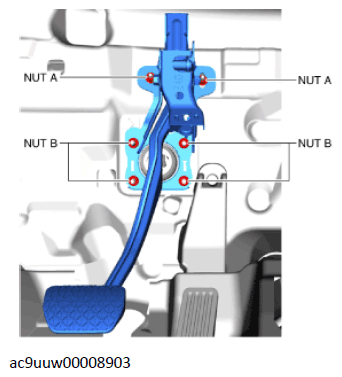

- Temporarily tighten nuts A.
- Temporarily tighten nuts B.
- Tighten nuts B to the specified torque.
Tightening torque
19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
- Tighten nuts A to the specified torque.
Tightening torque
19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
