Intake-Air System Location Index

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

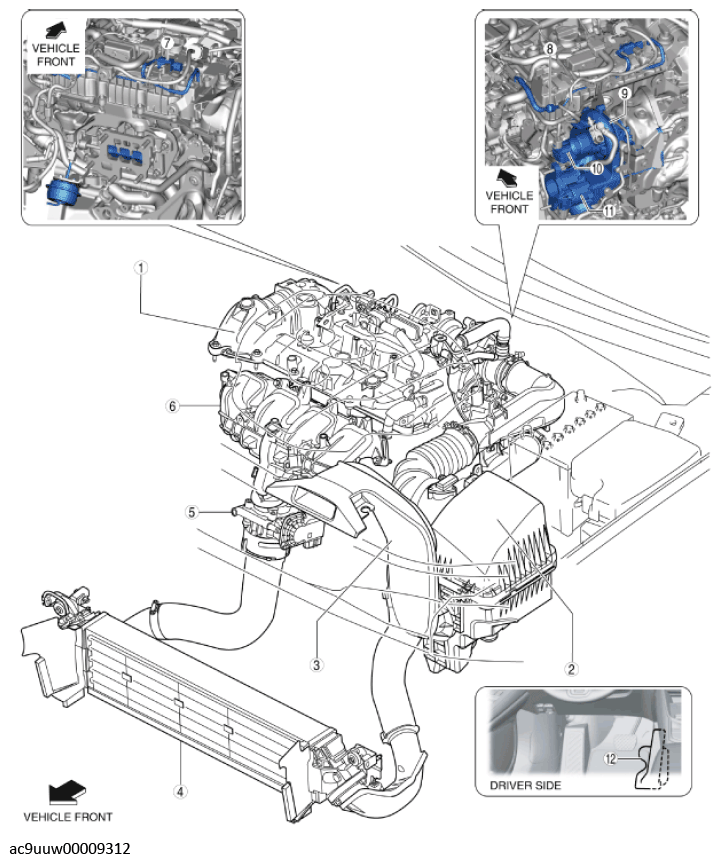

Fig 1: Intake-Air System Components Location (SKYACTIV-G 2.5T)

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Cylinder head cover (built-in vacuum chamber) (See VACUUM CHAMBER INSPECTION .) (See VACUUM CHAMBER REMOVAL/INSTALLATION .)
2	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT INSPECTION .)
3	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
4	Charge air cooler (See CHARGE AIR COOLER REMOVAL/INSTALLATION .) (See CHARGE AIR COOLER INSPECTION .)
5	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See THROTTLE BODY INSPECTION .)
6	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See INTAKE MANIFOLD VACUUM INSPECTION .)
7	Three way solenoid valve (See THREE WAY SOLENOID VALVE INSPECTION .) (See THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION .)
8	Check valve (intake-air system) (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION .) (See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION .)
9	Dynamic pressure turbo (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION .) (See DYNAMIC PRESSURE TURBO INSPECTION .)
10	Air bypass valve (See AIR BYPASS VALVE INSPECTION .) (See AIR BYPASS VALVE REMOVAL/INSTALLATION .)
11	Wastegate valve actuator (See WASTEGATE VALVE ACTUATOR INSPECTION .) (See WASTEGATE VALVE ACTUATOR REMOVAL/INSTALLATION .)
12	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
