Third-row Seat Back Trim Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

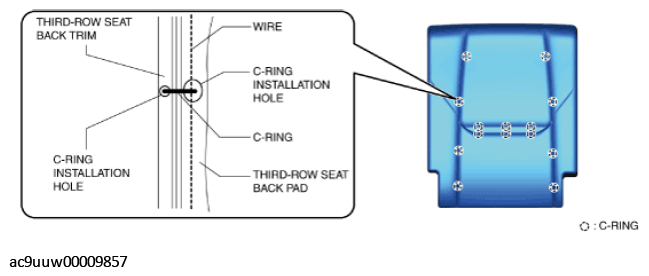

Align the third-row seat back trim with the installation hole of the third-row seat back pad, and install the C-rings.

Fig 1: Aligning Third-Row Seat Back Trim With Installation Hole Of Third-Row Seat Back Pad
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The position and number of C-rings differ depending on the type of seat.

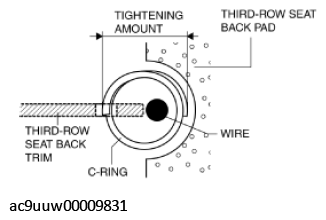

- Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
Fig 2: Installing C-Ring
Courtesy of MAZDA MOTORS CORP.
Press the third-row seat back pad inward while pulling the third-row seat back trim outward.

Fig 3: Pulling Third-Row Seat Back Trim Outward
Courtesy of MAZDA MOTORS CORP.

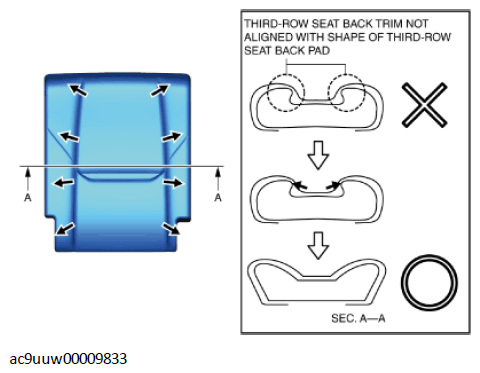

Align the third-row seat back trim with the shape of the third-row seat back pad while pressing the third-row seat back pad outward.

Fig 4: Pressing Third-Row Seat Back Pad Outward

Courtesy of MAZDA MOTORS CORP.
