Passenger-side Second-row Seat Back Frame
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

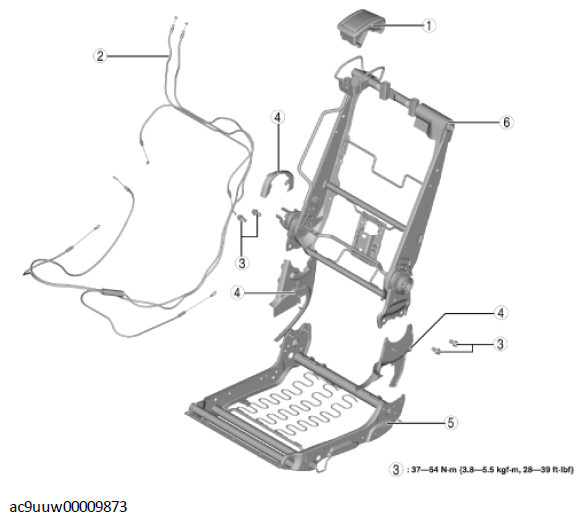

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Walkin lever |
| 2 |
Cable |
| 3 |
Bolt |
| 4 |
Reverse cover |
| 5 |
Second-row seat cushion frame |
| 6 |
Second-row seat back frame |
- Assemble in the reverse order of disassembly.
