Front Seat Back Trim Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If a C-ring is damaged while removing or installing the front seat back trim and front seat back pad, it may not be possible to install the front seat back trim and front seat back pad normally. When removing or installing the front seat back trim and front seat back pad, be careful not to damage the C-rings.
  • If a C-ring is damaged, replace it with a new one.
NOTE:
  • The position and number of C-rings differ depending on the type of seat.
  • Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

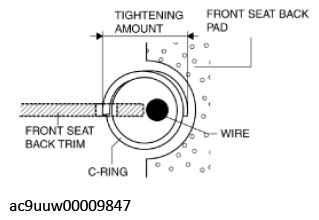

Fig 1: Installing Front Seat Back Trim
G11432464Courtesy of MAZDA MOTORS CORP.
  1. Install the C-rings by aligning the C-ring installation holes of the front seat back trim and the front seat back pad.

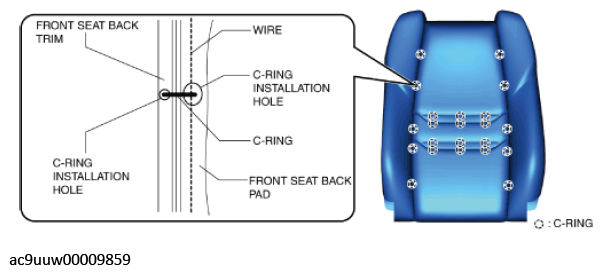

    Fig 2: Aligning C-Ring Installation Holes
    G11432465Courtesy of MAZDA MOTORS CORP.
  2. Press the front seat back pad inward while pulling the front seat back trim outward.

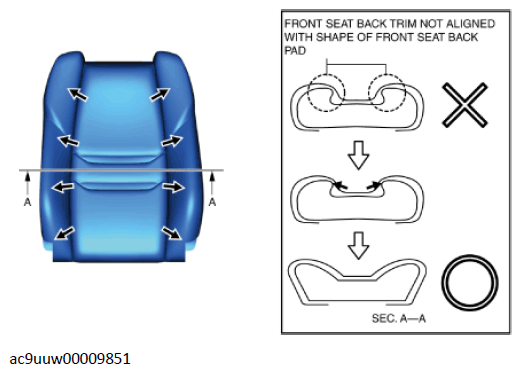

Fig 3: Pulling Front Seat Back Trim Outward
G11432466Courtesy of MAZDA MOTORS CORP.
