Set Plate Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  3. Remove the cap.

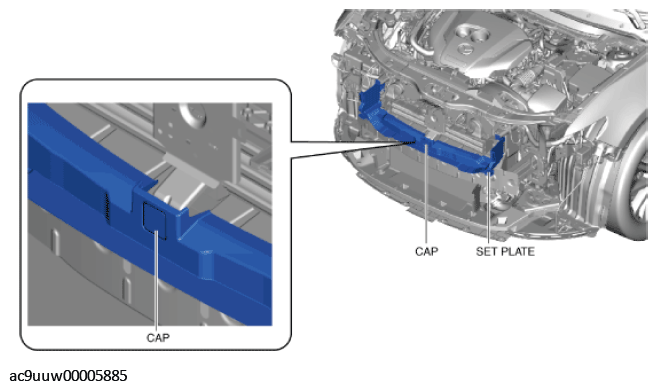

    Fig 1: Set Plate And Cap
    G11430842Courtesy of MAZDA MOTORS CORP.
  4. Remove the fasteners.

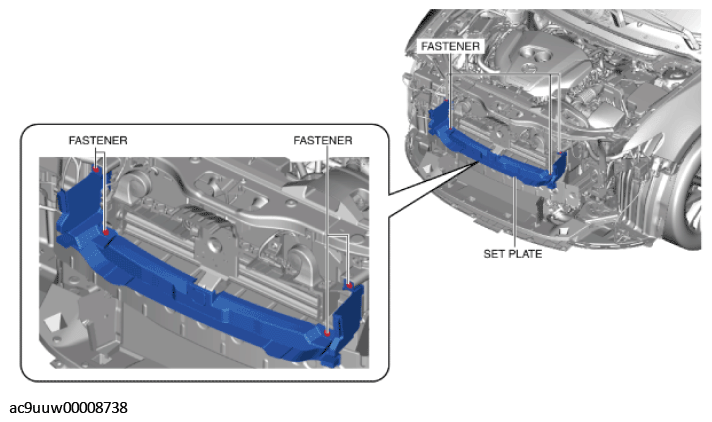

    Fig 2: Set Plate And Fasteners
    G11430843Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.

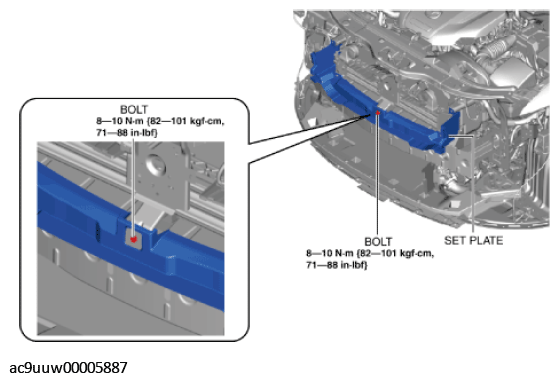

    Fig 3: Set Plate And Bolts With Torque Specification
    G11430844Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
