Rear Bumper Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Remove the ultrasonic sensor short-cord. (With parking sensor system) (See ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)

Remove the ultrasonic sensor. (With parking sensor system) (See ULTRASONIC SENSOR REMOVAL/INSTALLATION .)

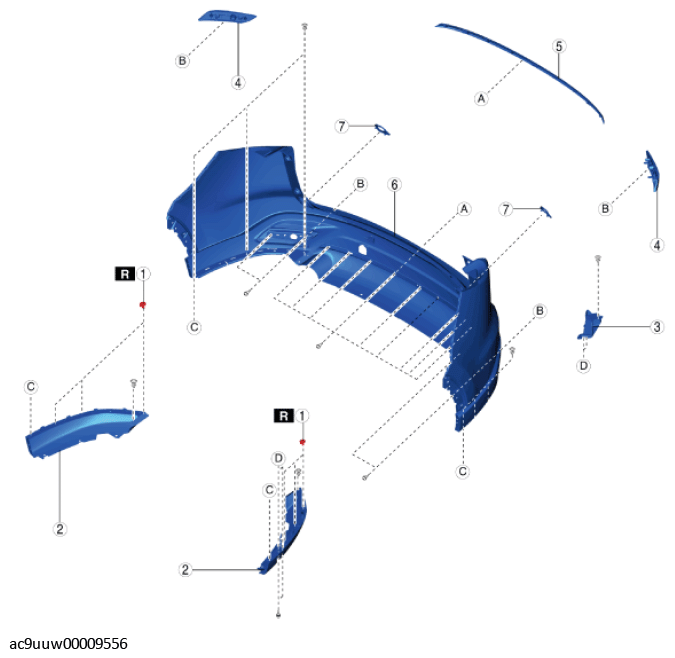

Fig 1: Exploded View Of Rear Bumper

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rivet (See Rivet Removal Note .)
2	Bumper guard
3	Bracket (With parking sensor system)
4	Rear reflector
5	Bumper guard (With bumper guard)
6	Rear bumper face
7	Cap

Assemble in the reverse order of disassembly.
