Hood Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

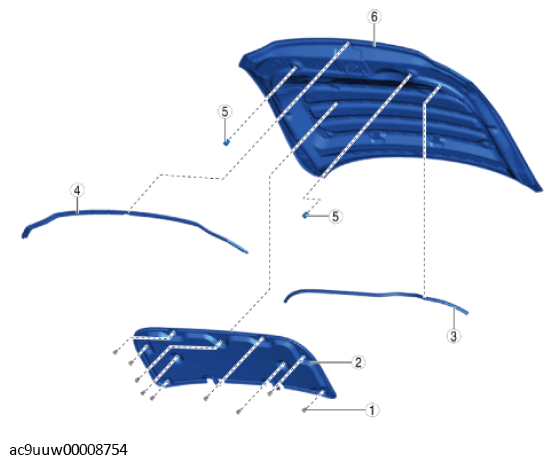

- Disassemble in the order indicated in the table.COMPONENT DESCRIPTION
1 Fastener 2 Hood insulator
(See Hood Insulator Installation Note .)3 Shroud seal weatherstrip 4 Parting seal weatherstrip 5 Stopper rubber 6 Hood - Assemble in the reverse order of disassembly.
