Front Over Fender Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

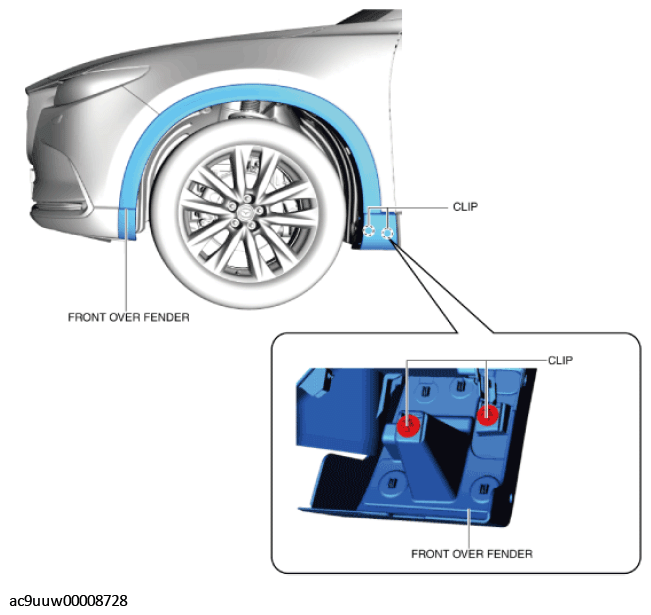

  1. Install the front over fender clips.
    Fig 1: Front Over Fender And Clips
    G11430791Courtesy of MAZDA MOTORS CORP.

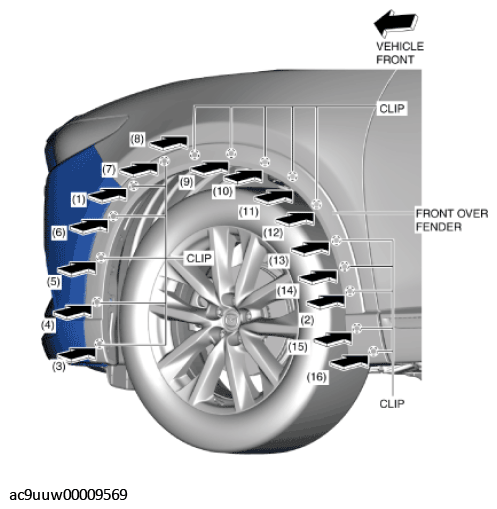

  2. Press in the front over fender in the order of the arrows shown in the figure and attach the front over fender clips to the vehicle body.
    Fig 2: Pressing Front Over Fender
    G11430792Courtesy of MAZDA MOTORS CORP.

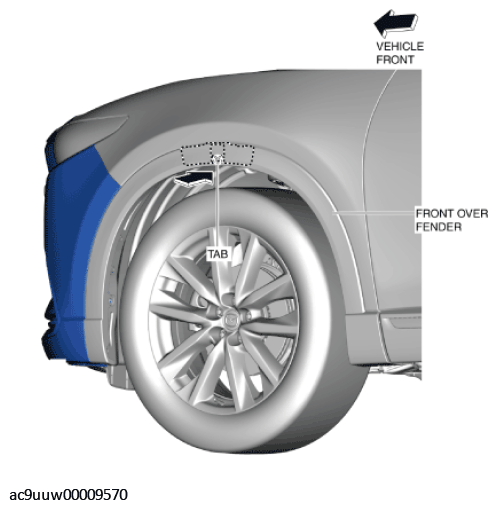

  3. Press the front over fender in the direction of the arrow shown in the figure and attach the front over fender tab to the front over fender bracket.
    Fig 3: Attaching Front Over Fender Tab To Front Over Fender Bracket
    G11430793Courtesy of MAZDA MOTORS CORP.

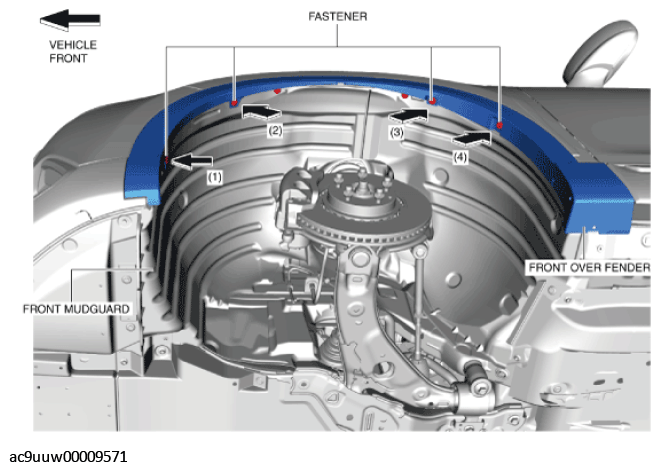

  4. Install the fastener in the order of arrows shown in the figure.
    Fig 4: Installing Front Over Fender Fasteners
    G11430794Courtesy of MAZDA MOTORS CORP.
  5. Install the front over fender.
