Front Center Speaker Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the procedure is performed while holding the front center speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
Remove the screws.

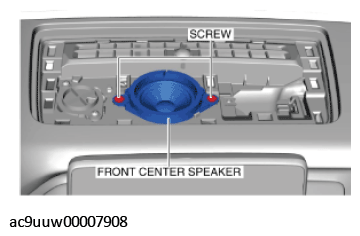

Fig 1: Front Center Speaker And Screws
Courtesy of MAZDA MOTORS CORP.
Remove the front center speaker.
Disconnect the front center speaker connector.
Install in the reverse order of removal.
