Trunk End Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
  3. Partially peel back the weather strip.

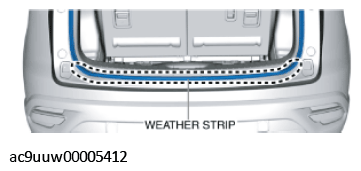

    Fig 1: Peeling Back Weather Strip
    G11435033Courtesy of MAZDA MOTORS CORP.
  4. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) and remove it while detaching clips, pin A and the pin B.

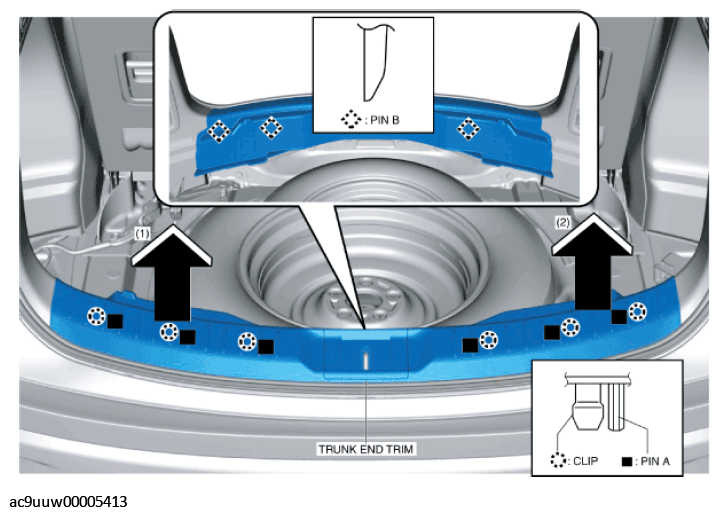

    Fig 2: Pulling Trunk End Trim
    G11435034Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
