Rear Console Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Move the rear console panel in the direction of the arrow shown in the figure, and detach clips A and clips B.

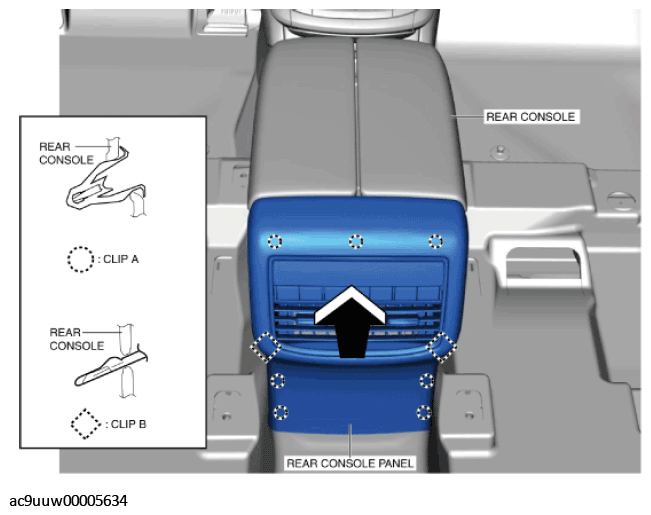

    Fig 1: Moving Rear Console Panel
    G11434989Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector and remove the harness clip

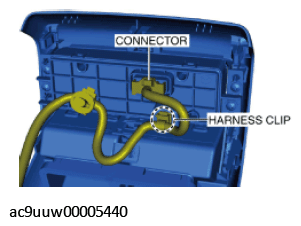

    Fig 2: Connector And Harness Clip
    G11434990Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear heat duct No. 1. (See REAR HEAT DUCT No. 1 REMOVAL/INSTALLATION .)
  6. Disconnect the connectors.

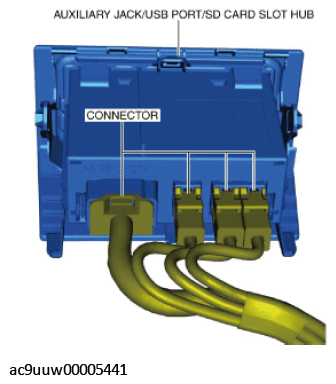

    Fig 3: Auxiliary Jack/USB Port/SD Card Slot Hub And Connectors
    G11434991Courtesy of MAZDA MOTORS CORP.
  7. Remove the harness clips.

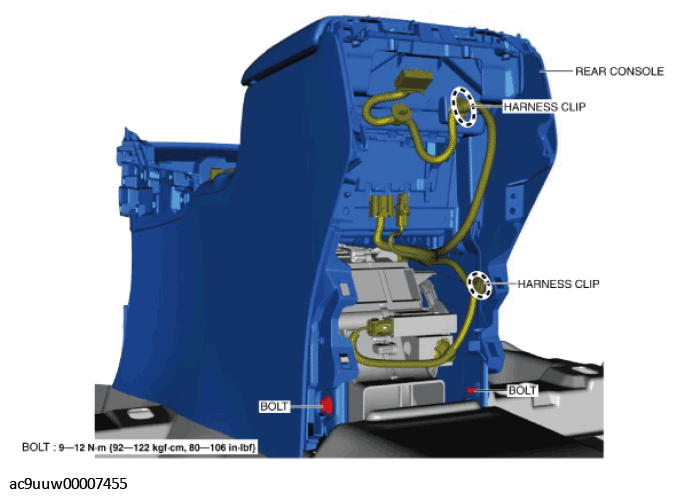

    Fig 4: Rear Console, Harness Clips And Bolts With Torque Specification
    G11434992Courtesy of MAZDA MOTORS CORP.
  8. Remove the bolts.
  9. Remove the bolts.

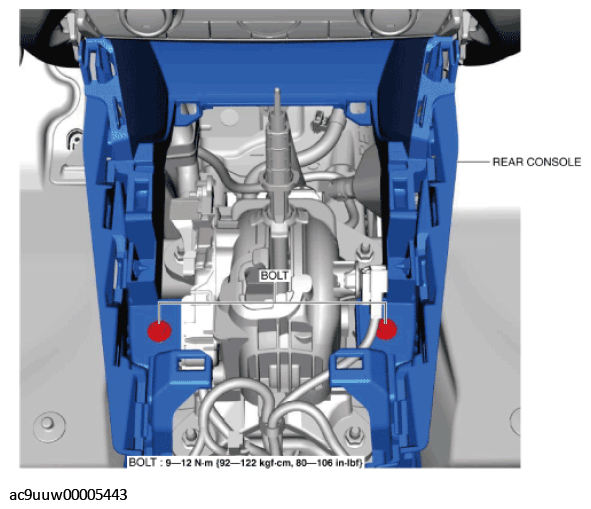

    Fig 5: Rear Console And Bolts With Torque Specification
    G11434993Courtesy of MAZDA MOTORS CORP.
  10. Pull the rear console in the direction of the arrow shown in the figure and remove it while detaching the clips.

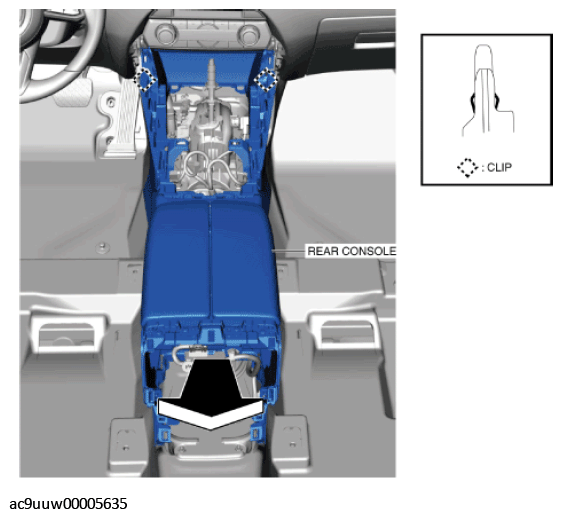

    Fig 6: Pulling Rear Console
    G11434994Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
