Liftgate Adjustment

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap and height difference between the liftgate and the roof panel.

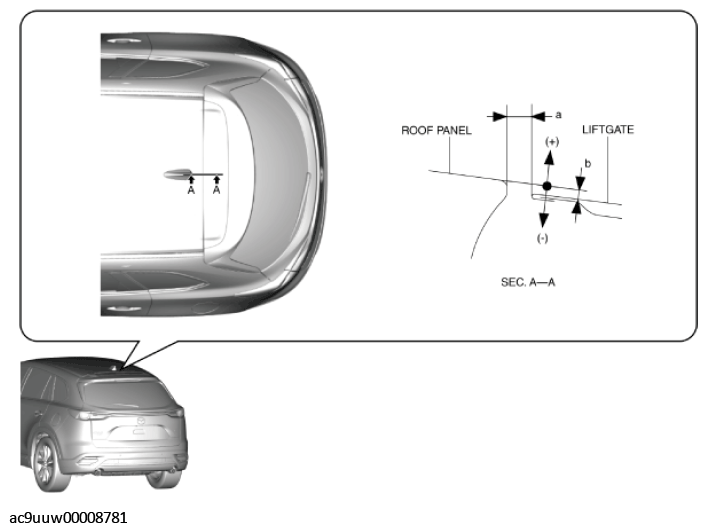

Fig 1: Measuring Gap And Height Difference Between Liftgate And Roof Panel
Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. 5.0-7.0 mm {0.20-0.27 in}
2. -2.7- -0.7 mm {-0.10- -0.03 in}
- If the measured value exceeds the standard clearance, adjust the liftgate using the following procedure:
  1. Loosen the liftgate hinge installation bolts and reposition the liftgate. (See LIFTGATE REMOVAL/INSTALLATION .)
  2. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION .)
  3. Verify that the gap and height difference between the liftgate and the roof panel is within the specification.
Measure the gap and height difference between the liftgate and the rear fender panel.

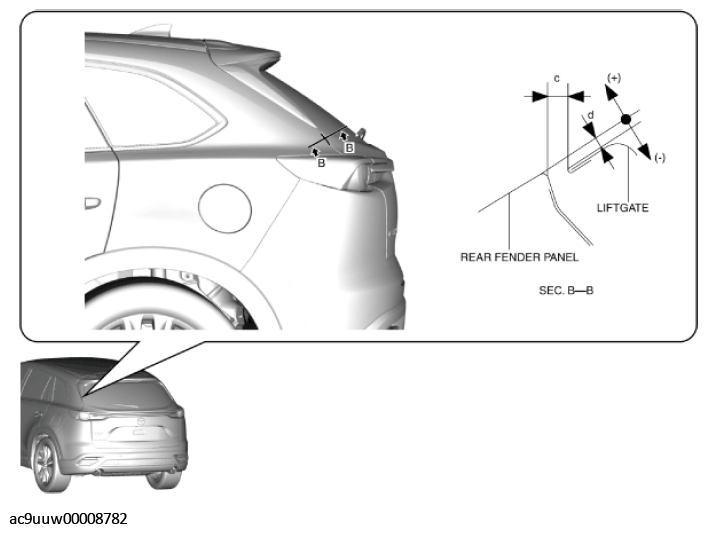

Fig 2: Measuring Gap And Height Difference Between Liftgate And Rear Fender Panel
Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. c: 4.0-8.0 mm {0.16-0.31 in}
2. d: -2.3-1.7 mm {-0.090-0.066 in}
- If the measured value exceeds the standard clearance, adjust the liftgate using the following procedure:
  1. Loosen the liftgate hinge installation bolts and reposition the liftgate. (See LIFTGATE REMOVAL/INSTALLATION .)
  2. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION .)
  3. Verify that the gap and height difference between the liftgate and the rear fender panel is within the specification.
  4. Verify that the liftgate opens/closes smoothly.
- If the liftgate does not open/close smoothly, adjust the liftgate lock striker position. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
Measure the gap between the liftgate and the rear bumper.

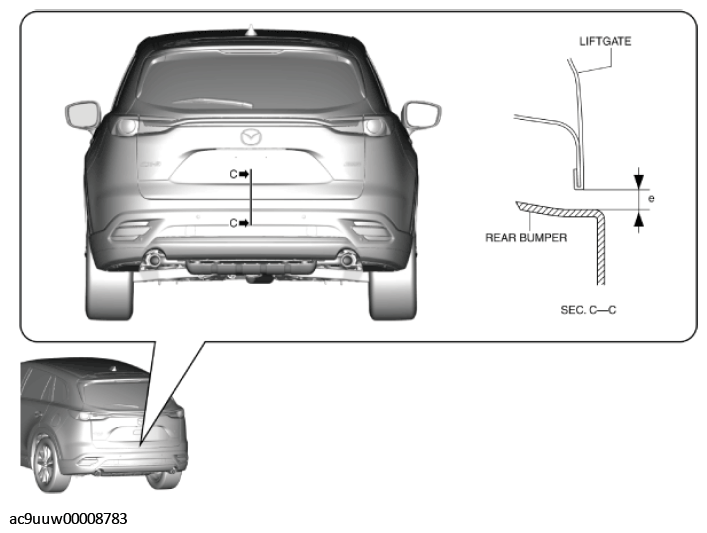

Fig 3: Measuring Gap Between Liftgate And Rear Bumper
Courtesy of MAZDA MOTORS CORP.

Standard clearance (With power liftgate (PLG) system)
1. e: 3.6-7.6 mm {0.15-0.29 in}
Standard clearance (Without power liftgate (PLG) system)
1. e: 4.0-8.0 mm {0.16-0.31 in}
- If the measured value exceeds the standard clearance, adjust the liftgate using the following procedure:
  1. Loosen the liftgate hinge installation bolts and reposition the liftgate. (See LIFTGATE REMOVAL/INSTALLATION .)
  2. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION .)
  3. Verify that the gap between the liftgate and the rear bumper is within the specification.
Spray or pour water on the liftgate and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
