SUNVISOR Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the screw.

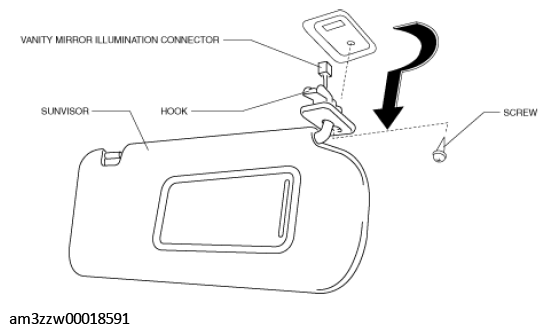

    Fig 1: Removing Screw
    G11449389Courtesy of MAZDA MOTORS CORP.
  3. Remove the sunvisor in the direction of the arrow shown in the figure while detaching the hook.
  4. Disconnect the vanity mirror illumination connector (with vanity mirror illumination).
  5. Press the center adaptor tabs in the direction of the arrows (1) shown in the figure using two remover tools.
    Fig 2: Pressing Center Adaptor Tabs
    G11449390Courtesy of MAZDA MOTORS CORP.
  6. Remove the center adaptor in the direction of the arrow (2) shown in the figure.
  7. Install in the reverse order of removal.
