Dashboard Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the plate nuts by hand in the direction of the arrow shown in the figure until they are seated.
    CAUTION:
    • After removing the dashboard, the plate nuts of the member junctions will have lifted. If the dashboard is removed with the plate nuts lifted, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, adjust the plate nuts of the member junctions.
    • If the plate nuts are tightened completely when installing bolts, the plate nuts may not move resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.
    NOTE:
    • If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.

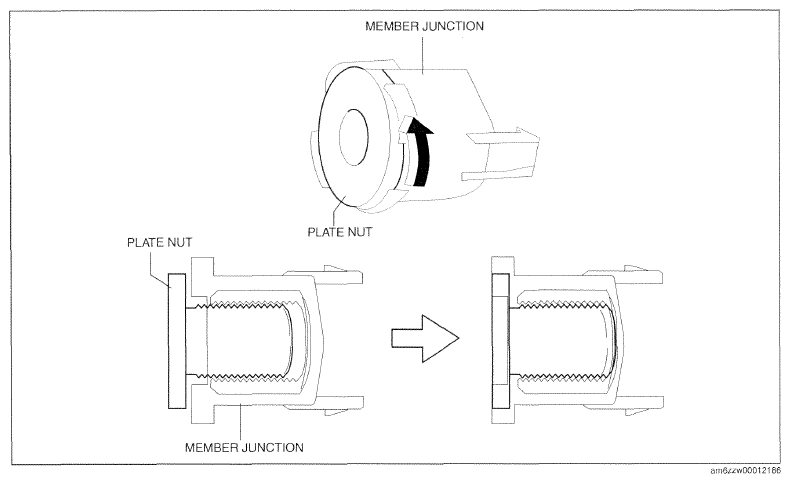

    Fig 1: Loosening Plate Nuts Using Hexagonal Wrench
    G09787937Courtesy of MAZDA MOTORS CORP.
  2. Verify that the member junction tabs are engaged with the dashboard.
    CAUTION:
    • If the member junction tabs become disengaged from the dashboard when inserting the dashboard into the cabin, the member junction could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.

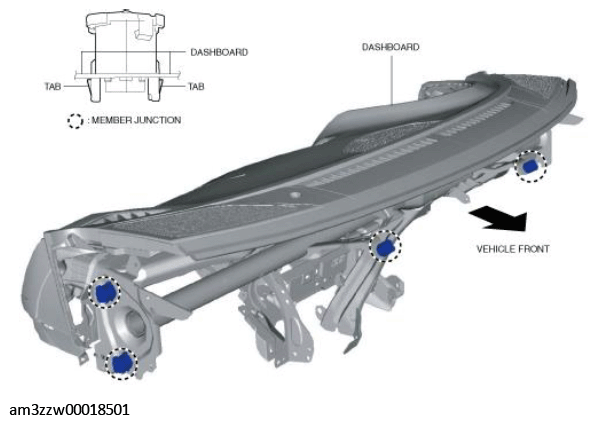

    Fig 2: Locating Member Junction Tabs
    G11449209Courtesy of MAZDA MOTORS CORP.
  3. Insert the dashboard from the front driver-side door or front passenger-side door opening.
  4. Move the dashboard in the direction of the arrow shown in the figure, align it with the guide pins on the vehicle body sides, and set it.
    NOTE:
    • Visually verify the installation condition of the guide pins on the vehicle body sides and the dashboard from the position shown in the figure.

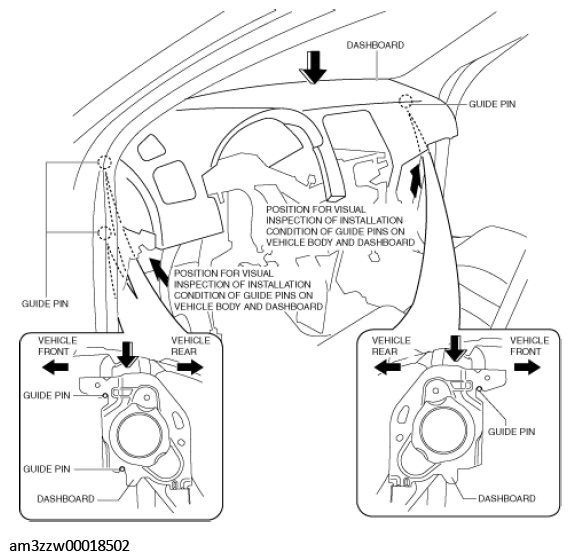

    Fig 3: Installing Guide Pins
    G11449210Courtesy of MAZDA MOTORS CORP.
  5. Insert the bolts on the passenger-side.
    NOTE:
    • Tighten the bolts to the specified torque after the member junction position of the bolts is positioned.

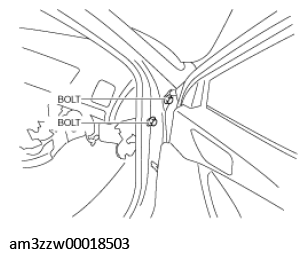

    Fig 4: Member Junction Bolts Location
    G11449211Courtesy of MAZDA MOTORS CORP.
  6. Tighten the bolts on the driver-side until they are seated.
    NOTE:
    • Do not use a tool to tighten the bolts, and instead hand tighten them until they feel sufficiently tight.

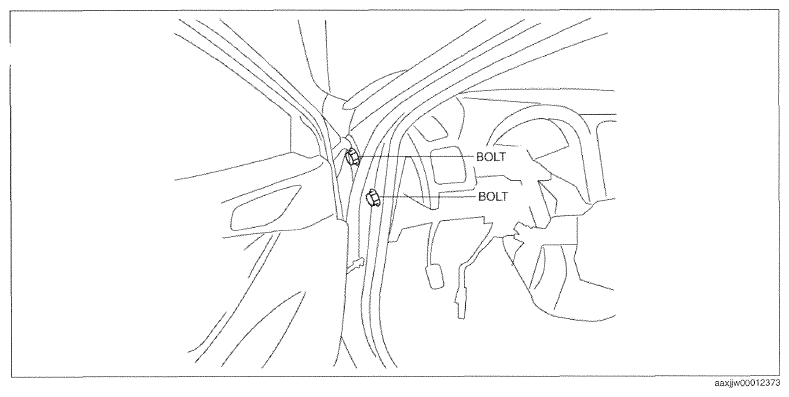

    Fig 5: Tightening Driver-Side Bolts
    G09772216Courtesy of MAZDA MOTORS CORP.
  7. Tighten the bolts on the passenger-side until they are seated.
    NOTE:
    • After the bolts are seated, rotate the plate nuts of the member junctions and visually inspect them from the lower side of the dashboard on the passenger-side to verify that they emerge in the direction of the body panels.

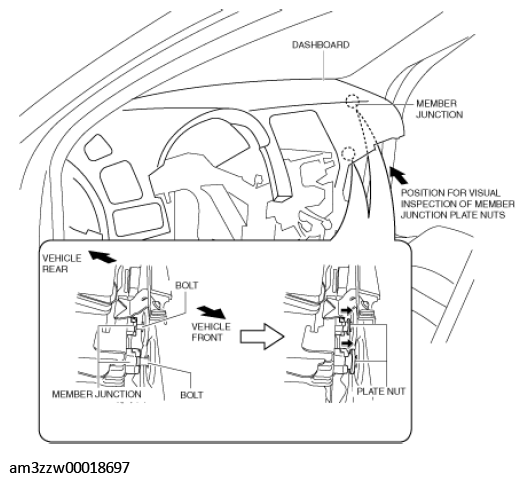

    Fig 6: Tightening Passenger-Side Bolts
    G11449213Courtesy of MAZDA MOTORS CORP.
  8. Verify that the member junction hole of the bolt and the through-hole of the bolt on the vehicle side are aligned.
    NOTE:
    • If the member junction hole of the bolt is not aligned with the through-hole of the bolt on the vehicle side, remove the bolts on the driver-side and the front passenger-side, then resume the procedure from Step  5.

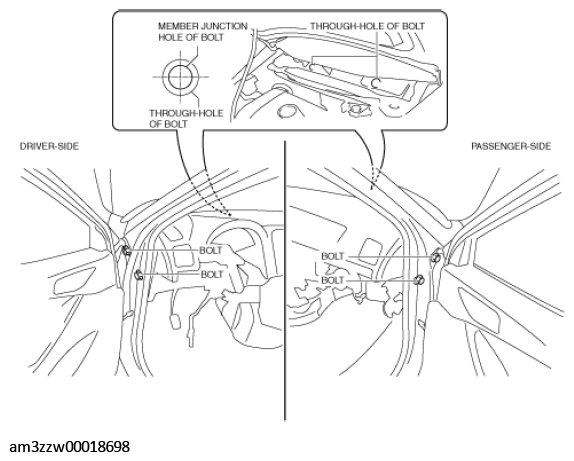

    Fig 7: Member Junction Hole Of Bolt Location
    G11449214Courtesy of MAZDA MOTORS CORP.
  9. Seated the bolts.
    CAUTION:
    • If the bolts are reused, the plate nuts of the member junctions may not move causing damage to the member junction tabs and the vehicle body. Always replace the bolts with new ones.

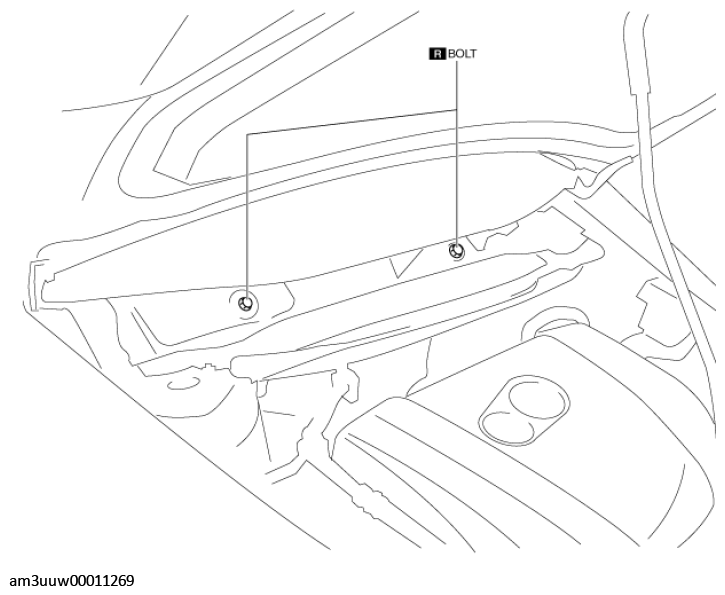

    Fig 8: Member Junctions Plate Nuts Location
    G11449215Courtesy of MAZDA MOTORS CORP.
  10. Completely tighten the bolts on the driver-side and passenger-side to the specified torque.

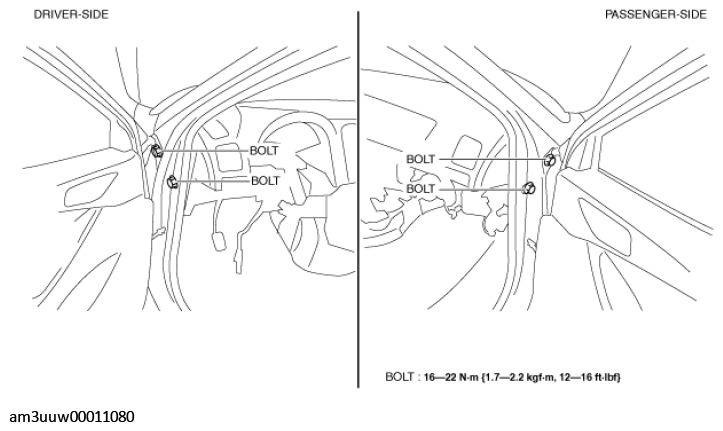

    Fig 9: Tightening Driver And Passenger Side Bolts
    G11449216Courtesy of MAZDA MOTORS CORP.
  11. Completely tighten the bolts to the specified torque.

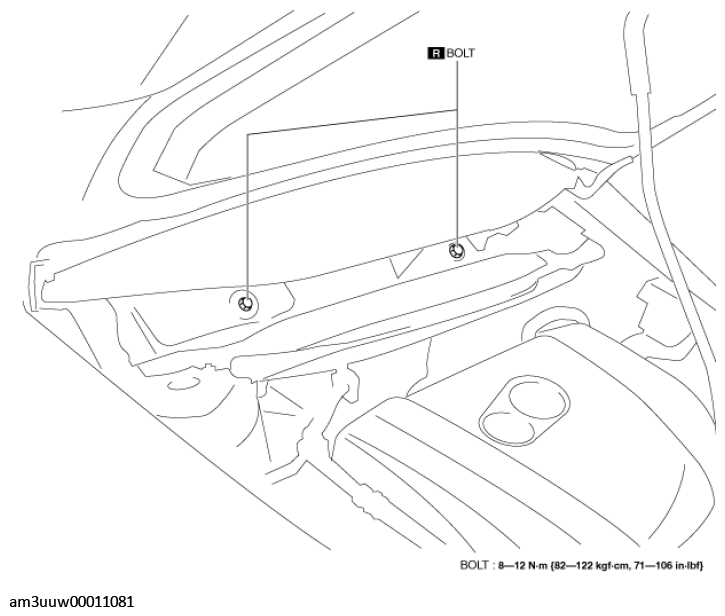

    Fig 10: Tightening Dashboard Bolts
    G11449217Courtesy of MAZDA MOTORS CORP.
  12. Install the caps.

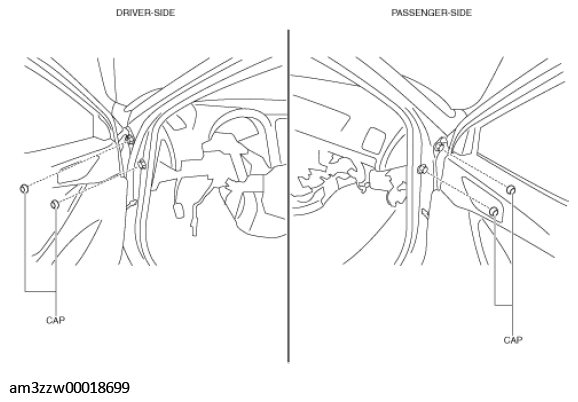

    Fig 11: Installing Caps On Driver And Passenger Side
    G11449218Courtesy of MAZDA MOTORS CORP.
  13. Install the dashboard bracket.

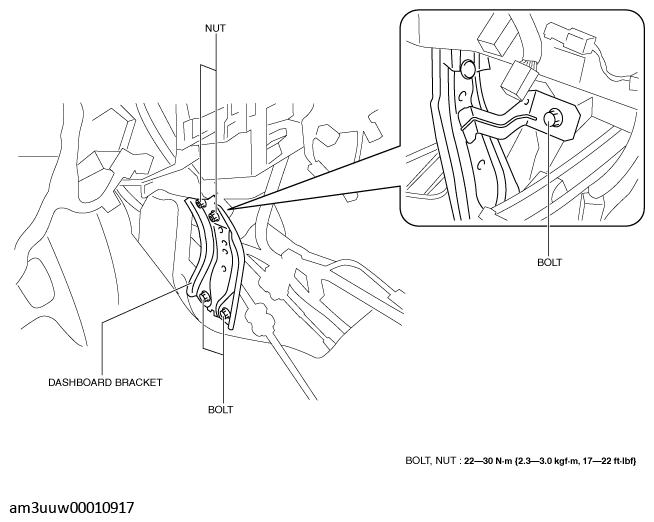

    Fig 12: Installing Dashboard Bracket
    G11449219Courtesy of MAZDA MOTORS CORP.
  14. Install the nuts.
  15. Install the bolts.
  16. Connect the dashboard harness connectors and install the wiring harness clip.
  17. Install the parking brake lever component (without electric parking brake).

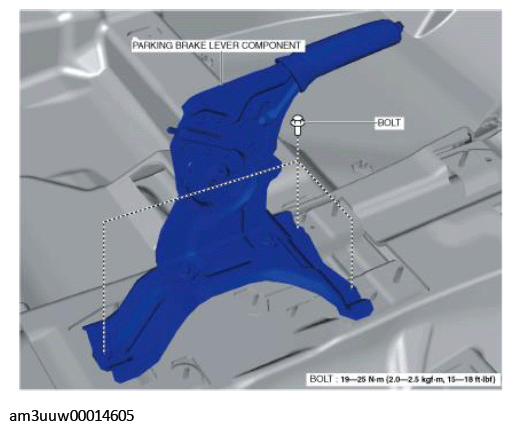

    Fig 13: Installing Parking Brake Lever Component - Without Electric Parking Brake
    G11449220Courtesy of MAZDA MOTORS CORP.
  18. Install the bolts (without electric parking brake).
  19. Install the front console bracket.

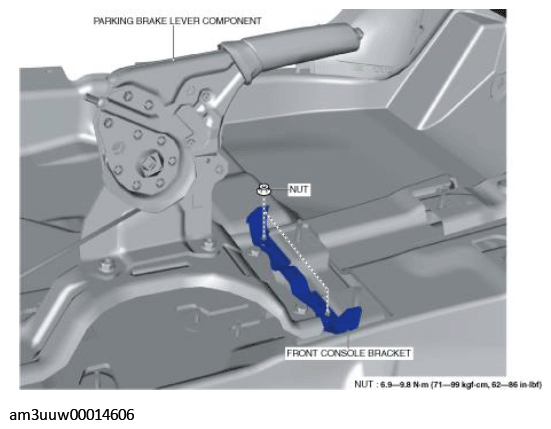

    Fig 14: Installing Front Console Bracket
    G11449221Courtesy of MAZDA MOTORS CORP.
  20. Install the nuts.
  21. Install the following parts:
    1. Electric parking brake control module bracket (with electric parking brake) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
    2. Electric parking brake control module (with electric parking brake) (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
    3. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    5. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    6. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    7. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    8. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    9. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    10. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    11. Audio unit (without center display) (See AUDIO UNIT REMOVAL/INSTALLATION .)
    12. Center display (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    13. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    14. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    15. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    16. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    17. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    18. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    19. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    20. CD player (with CD player) (See CD PLAYER INSTALLATION .)
    21. Front console box (without electric parking brake) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    22. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    23. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    24. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    25. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    26. Upper panel (See UPPER PANEL INSTALLATION .)
    27. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    28. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    29. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    30. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    31. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    32. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
    33. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    34. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    35. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    36. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    37. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  22. Shift the selector lever from the D position to the P position (ATX).
  23. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  24. Remove the wheel blocks on the front and rear wheels (without electric parking brake).
