Brake Fluid Inspection
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

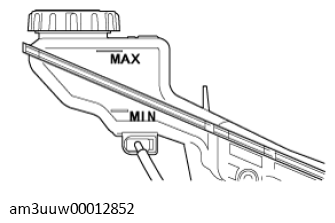

- Verily that the brake fluid level in the brake fluid reserve tank is between the MAX and MIN marks.
World manufacturer identification "JM1"
Courtesy of MAZDA MOTORS CORP.
World manufacturer identification "3MZ"
Courtesy of MAZDA MOTORS CORP.
- If the brake fluid level is below the MIN mark, add brake fluid.
Brake fluid type SAE J1703 or FMVSS116 DOT-3
