No. 1 Blown Fuses

BLOWN FUSE SPECIFICATION

1	BLOWN FUSES

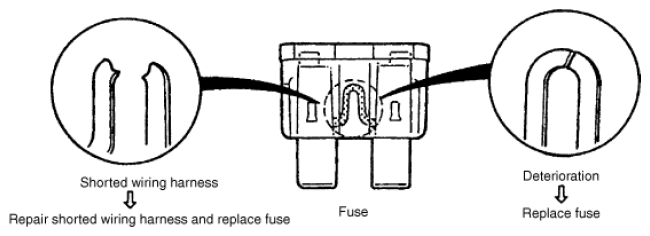

[TROUBLESHOOTING HINTS] Inspect condition of fuse.
Courtesy of MAZDA MOTORS CORP.

Damaged fuse	Related wiring harness
MAIN	FUEL PUMP 2 fuse IG2 fuse ROOM fuse ENG.MAIN fuse INJECTOR fuse EVVT fuse HAZARD fuse IG1 relay
FAN	Cooling fan relay
ENG IG1	Fuel pump relay PCM
FUEL PUMP 2	Fuel pump relay
STR	Starter Generator
IG2	Starter relay ACC relay
ENG.MAIN	Main relay
INJECTOR	Fuel injector relay
EVVT	Electric variable valve timing relay
ENGINE 1	Electric variable valve timing relay A/F sensor HO2S MAF sensor/IAT sensor No. 1 Intake CMP sensor Three way solenoid valve Air bypass valve EGR valve CV solenoid valve (U.S.A. and CANADA)
ENGINE 2	Fuel injector relay Purge solenoid valve OCV PCM Exhaust CMP sensor Ignition coil/ion sensor No. 1 Ignition coil/ion sensor No. 2 Ignition coil/ion sensor No. 3 Ignition coil/ion sensor No. 4
ENGINE 3	Cooling fan relay Engine oil solenoid valve Engine oil level sensor Active air shutter
