Circuit between module and part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Disconnect the connector on the module side and the connector on the part side of the circuit to be inspected.

   Courtesy of MAZDA MOTORS CORP.

   NOTE:

   • For the connector disconnection procedure, refer to the removal/installation procedure for each part.
3. Inspect for continuity between the applicable terminals of the module-side connector and the part-side connector.

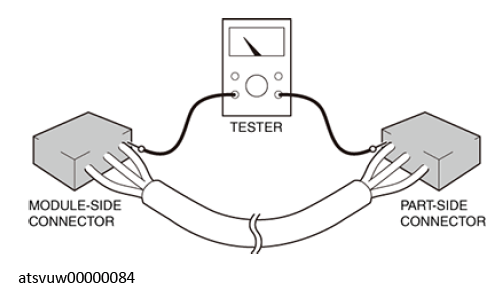

   Courtesy of MAZDA MOTORS CORP.

   NOTE:

   • If the inspection is difficult due to the distance between the module-side and part-side connectors being too far, the inspection can be performed using only one of the connectors by shorting one of the connector terminals using a jumper wire.

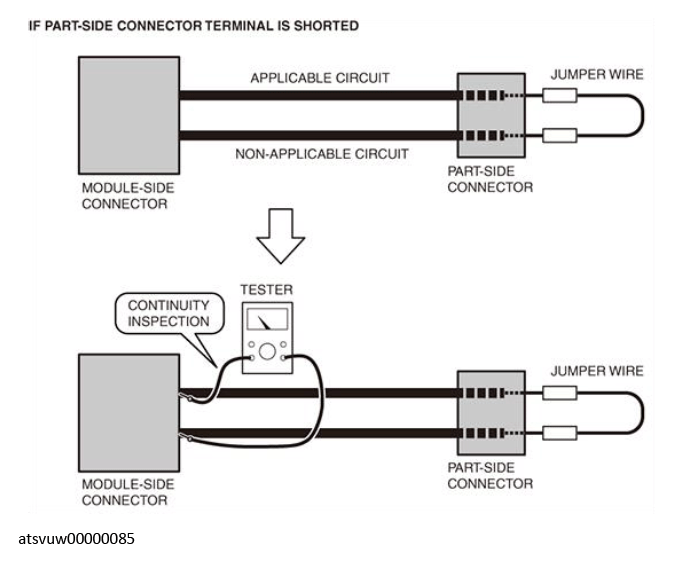

   Courtesy of MAZDA MOTORS CORP.

   If there is continuity:

   • There is no open circuit in the circuit, therefore the inspection is completed.

   If there is no continuity:

   • To specify the malfunctioning location, go to the next step.
4. Refer to the appropriate wiring diagram and verify if there is a common connector between the applicable circuits.

If there is a common connector:

• Disconnect the common connector and inspect the connector and terminal. (See CONNECTOR INSPECTION .)

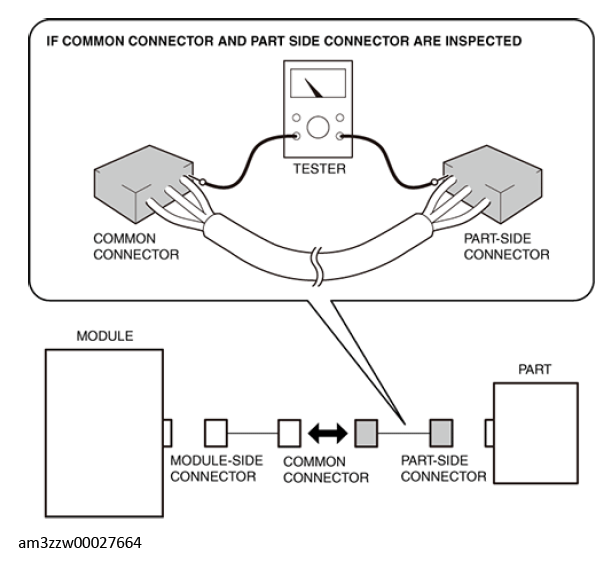

Courtesy of MAZDA MOTORS CORP.

• Inspect each common connector for continuity to determine the malfunctioning location.

• Repair or replace the vehicle wiring harness which has an open circuit.

If there is no common connector:

• Repair or replace the vehicle wiring harness.
