Rear Oil Seal Replacement: Notes

Special Service Tool (SST)

SPECIAL SERVICE TOOL DESCRIPTION

  1. Mazda SST number
  2. Global SST number
  1. 49 S033 101
  2. -

    Dust cover installer
G13698255Courtesy of MAZDA MOTORS CORP.
  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] (2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] (AWD).)
  2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

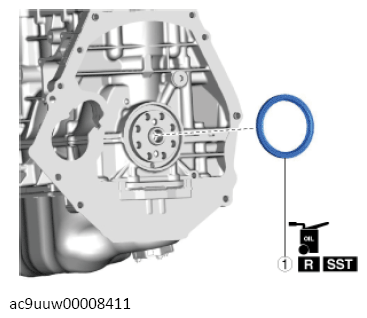

    G13671790Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Rear oil seal)
    See REAR OIL SEAL REMOVAL NOTE .)
    (See REAR OIL SEAL INSTALLATION NOTE .)
