Plug Hole Plate Removal/Installation: Installation

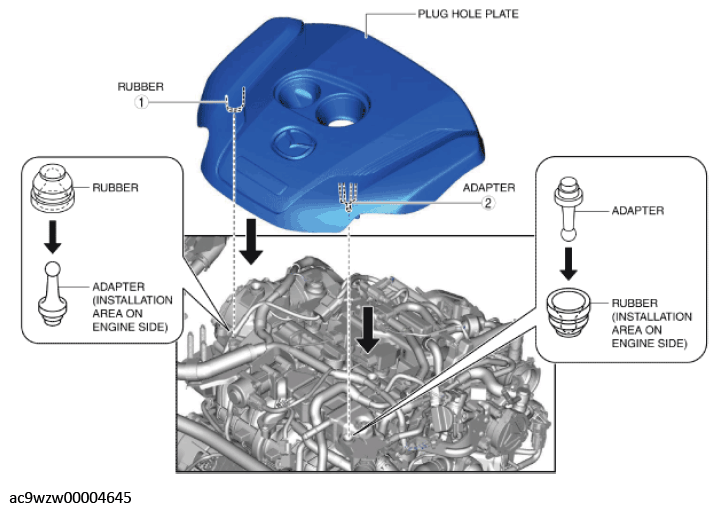

  1. Press the plug hole plate in the order of the numbers shown in the figure and insert the rubber and adapters into the engine.
    G11436777Courtesy of MAZDA MOTORS CORP.

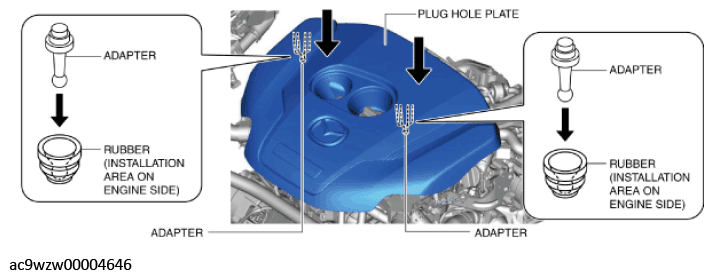

  2. While simultaneously pressing the areas indicated by the arrows on the plug hole plate, insert the adapters into the rubber on the engine.
    G11436778Courtesy of MAZDA MOTORS CORP.
