Front Oil Seal Installation Note: Notes

  1. Apply clean engine oil to the inner surface of a new front oil seal.
  2. Insert the front oil seal into the engine front cover by hand.

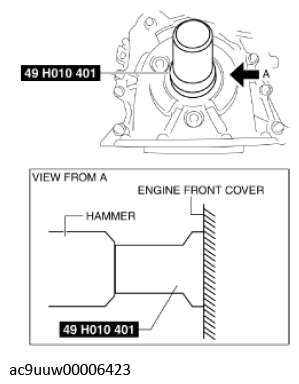

  3. Tap the oil seal in evenly using the SST and a hammer.
    G11436719Courtesy of MAZDA MOTORS CORP.

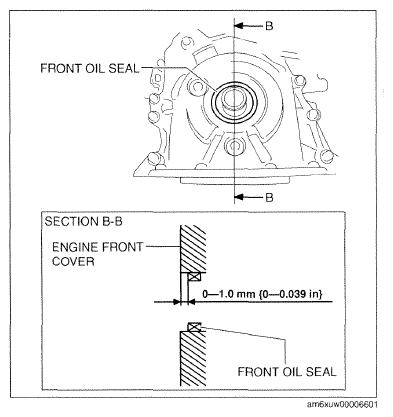

    G09785196Courtesy of MAZDA MOTORS CORP.
