Exhaust System Insulator Removal/Installation (2WD): Notes

Install in the reverse order of removal.

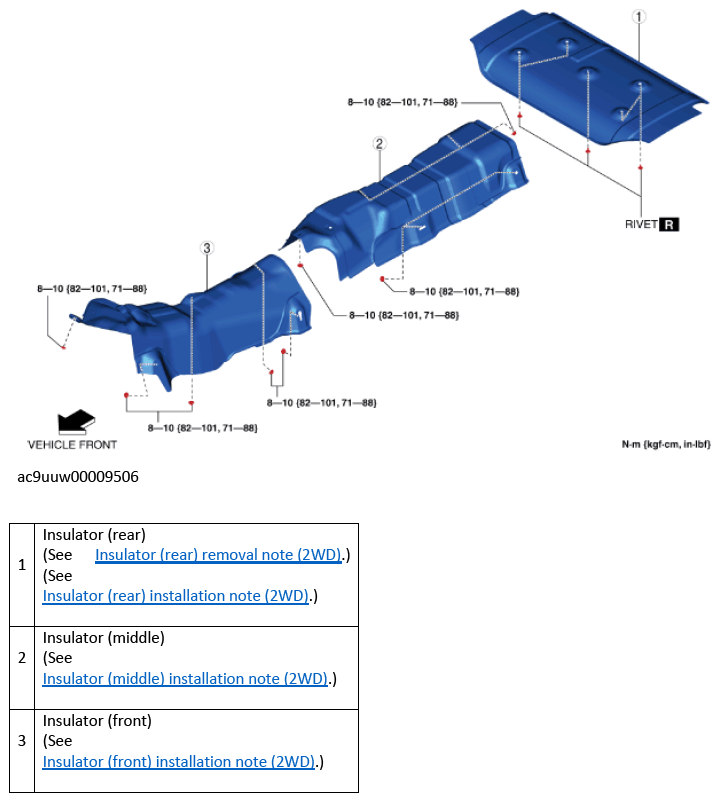

Fig 1: Exhaust System Insulator With Torque Specification (2WD)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Insulator (rear) (See INSULATOR (REAR) REMOVAL NOTE (2WD) .) (See INSULATOR (REAR) INSTALLATION NOTE (2WD) .)
2	Insulator (middle) (See INSULATOR (MIDDLE) INSTALLATION NOTE (2WD) .)
3	Insulator (front) (See INSULATOR (FRONT) INSTALLATION NOTE (2WD) .)
