Oil Pump Driven Sprocket Installation Note

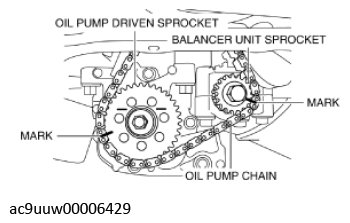

- Align the marks on each sprocket and the oil pump chain.

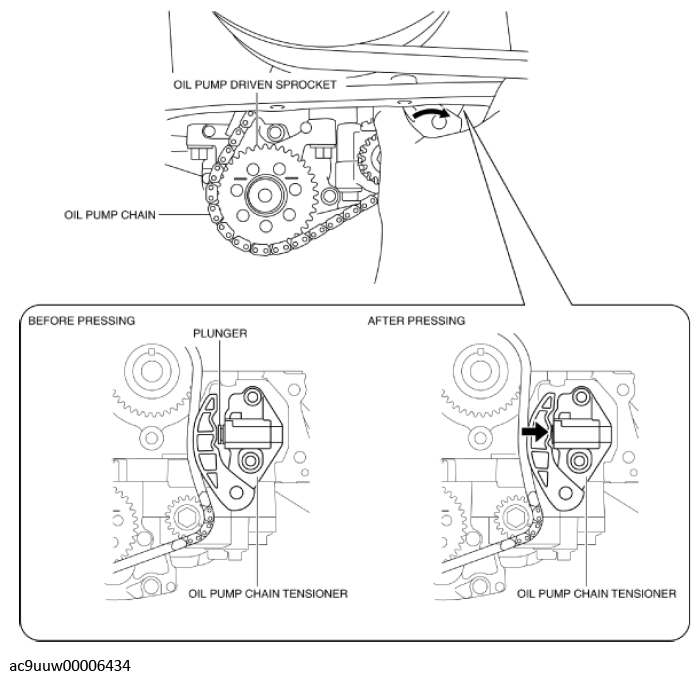

- While pressing the oil pump chain in the direction of the arrow shown in the figure, install the oil pump driven sprocket.

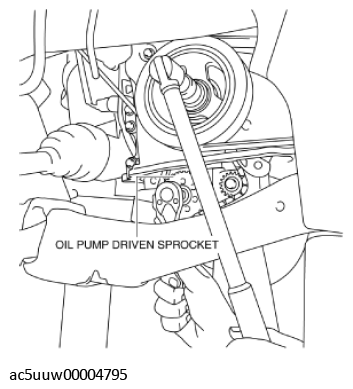

- While locking the oil pump against rotation as shown in the figure, tighten the oil pump driven sprocket installation bolt.
Tightening torque
26-36 N.m {2.7-3.6 kgf.m, 20-26 ft.lbf}
