Water Pump Component Installation Note

Tighten the bolts in the order shown in the figure.

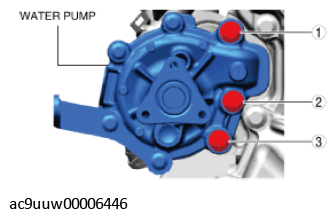

Fig 1: Water Pump Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
Install the engine oil pressure sensor/engine oil temperature sensor. (See ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)

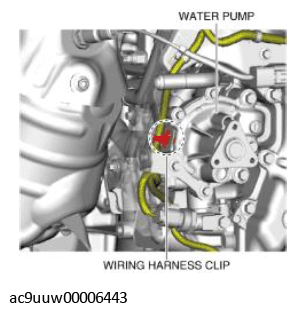

Install the wiring harness clip shown in the figure.

Courtesy of MAZDA MOTORS CORP.

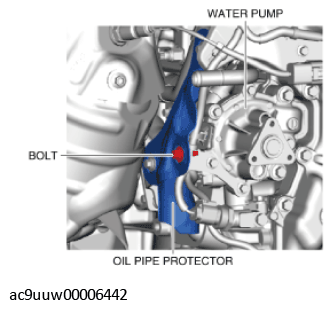

Tighten the bolt shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
