Coolant Reserve Tank Removal/Installation: Notes

  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

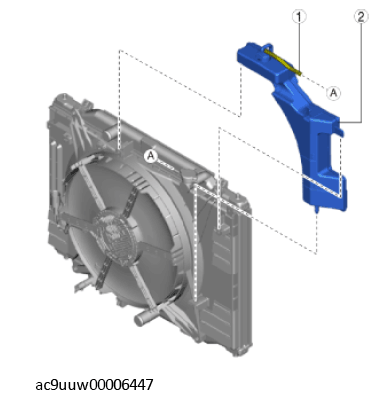

    G11436174Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Hose
    2 Coolant reserve tank
    (See Coolant Reserve Tank Removal Note .)
