Parking Assist Unit Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

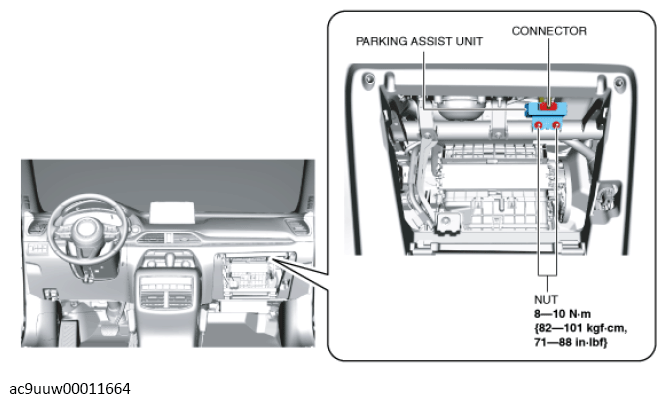

    Fig 1: Parking Assist Unit Nuts With Torque Specification
    G13702776Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.
  5. Remove the parking assist unit.
  6. Install in the reverse order of removal.
