Front Parking Sensor Buzzer Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

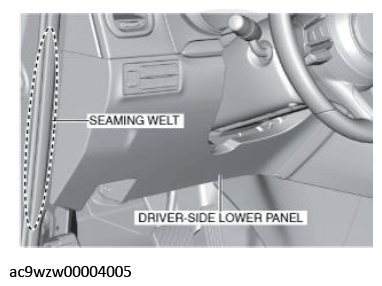

  4. Partially peel back the seaming welt.
    G12264969Courtesy of MAZDA MOTORS CORP.

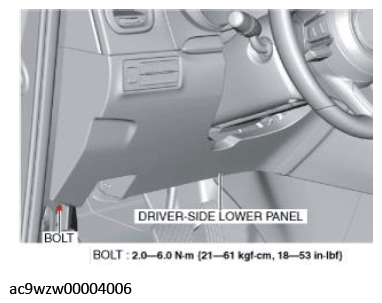

  5. Remove the bolt.
    Fig 1: Driver-Side Lower Panel Bolt With Torque Specification
    G12264970Courtesy of MAZDA MOTORS CORP.

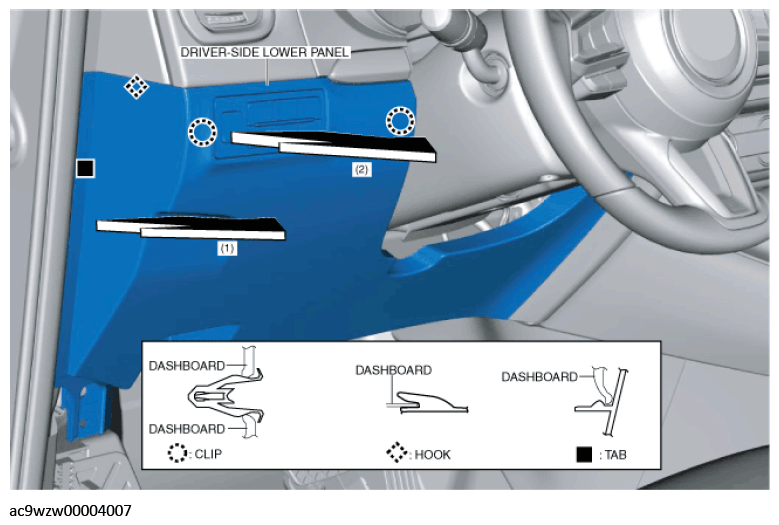

  6. Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching hook, clips and tab.
    G12264971Courtesy of MAZDA MOTORS CORP.
  7. Set the driver-side lower panel aside.

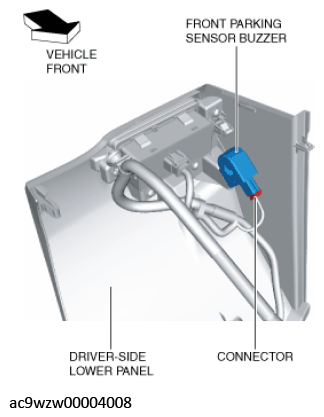

  8. Disconnect the connector.
    G12264972Courtesy of MAZDA MOTORS CORP.
  9. While pressing the front parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the front parking sensor buzzer in the direction of arrow (2) to detach the front parking sensor buzzer tabs from the driver-side lower panel.
    G12264973Courtesy of MAZDA MOTORS CORP.
  10. Remove the front parking sensor buzzer.
  11. Install in the reverse order of removal.
