Glass Panel Adjustment

Fully close the glass panel.

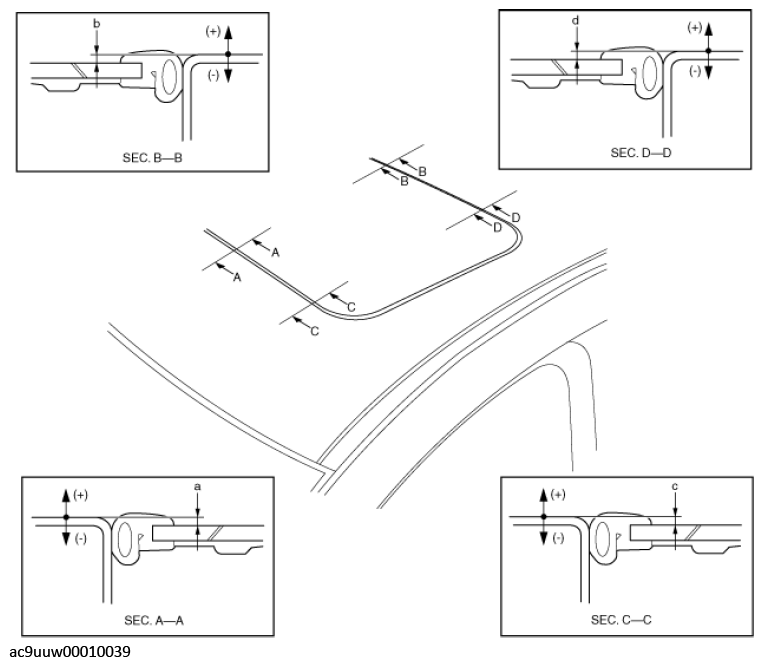

Measure the gap and height between the glass panel and body.
Loosen the installation screws and adjust the glass panel.

Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. -2.4-0.2 mm {-0.094-0.007 in}
2. -2.3-0.3 mm {-0.09-0.01 in}
3. -2.1-0.5 mm {-0.08-0.01 in}
4. -1.9-0.7 mm {-0.07-0.02 in}
Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION .)

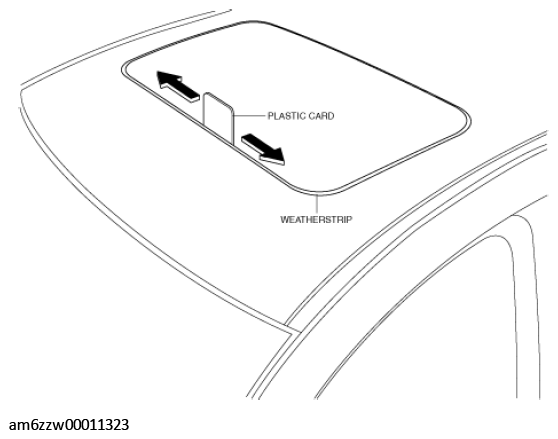

When inserting the plastic card between the weatherstrip and the body, and moving the plastic card in the direction of the arrows shown in the figure, verify that the plastic card has resistance.

Courtesy of MAZDA MOTORS CORP.
