Trunk Board Removal/Installation

  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)

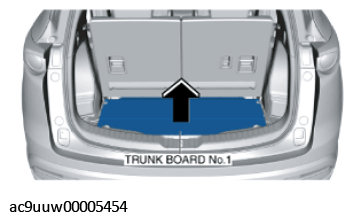

  2. Remove the trunk board No. 1 in the direction of the arrow shown in the figure.
    G11435030Courtesy of MAZDA MOTORS CORP.

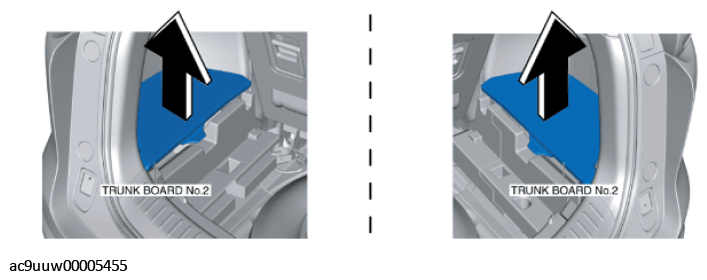

  3. Remove the trunk board No. 2 in the direction of the arrow shown in the figure.
    G11435031Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
