Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

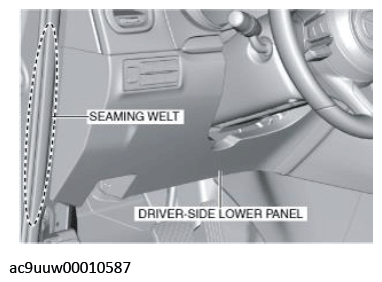

  4. Partially peel back the seaming welt.
    G12266308Courtesy of MAZDA MOTORS CORP.

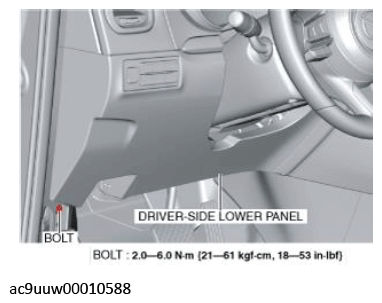

  5. Remove the bolt.
    Fig 1: Driver-Side Lower Panel Bolt With Torque Specification
    G12266309Courtesy of MAZDA MOTORS CORP.

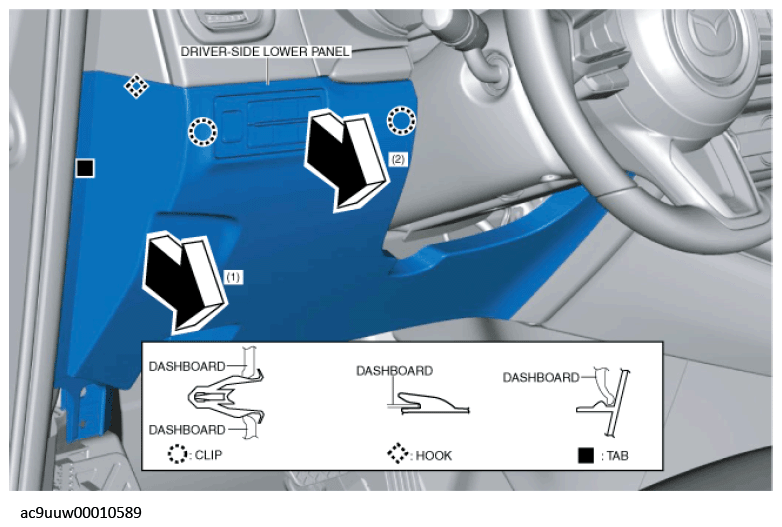

  6. Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching the hook, clips and tab.
    G12266310Courtesy of MAZDA MOTORS CORP.
  7. Set the driver-side lower panel aside.

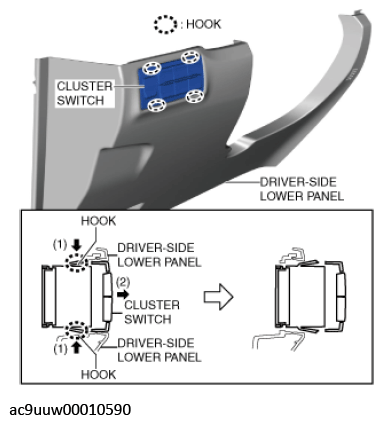

  8. Remove the hooks in the direction of the arrow in the order of (1), (2) shown in the figure.
    G12266311Courtesy of MAZDA MOTORS CORP.
  9. Disconnect the cluster switch connector.
  10. Install in the reverse order of removal.
