Side Step Molding Installation

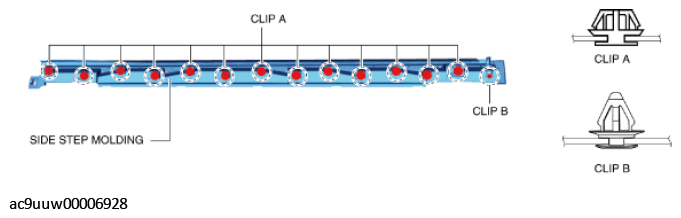

  1. Install clips A and B to the side step molding.
    G11431255Courtesy of MAZDA MOTORS CORP.

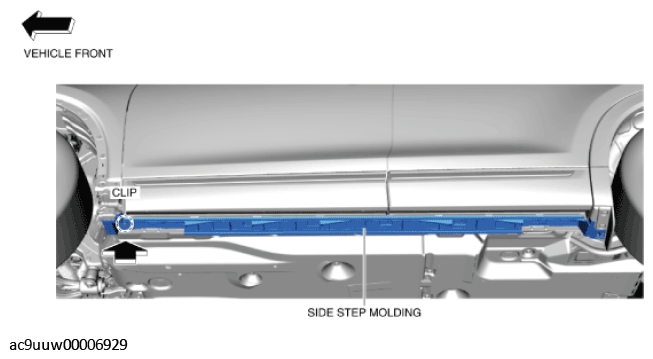

  2. Press the side step molding in the direction of the arrow shown in the figure and install clip.
    G11431256Courtesy of MAZDA MOTORS CORP.

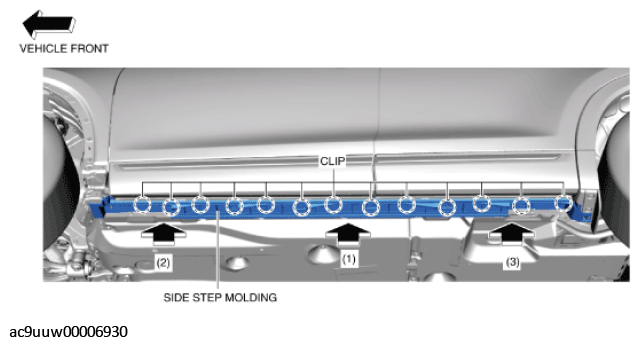

  3. Press the side step molding in the direction of the arrows shown in the figure and install clips.
    G11431257Courtesy of MAZDA MOTORS CORP.

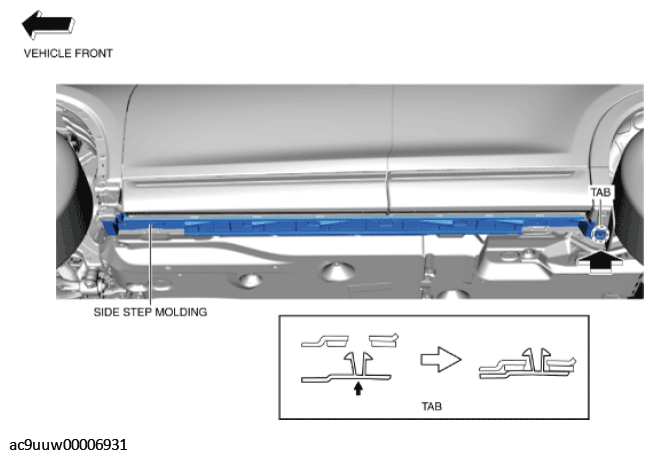

  4. Press the side step molding in the direction of the arrow shown in the figure and install the tab.
    G11431258Courtesy of MAZDA MOTORS CORP.
  5. Install the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
