Rear Spoiler Installation

  1. When a rear spoiler is to be reused, perform the following procedure:

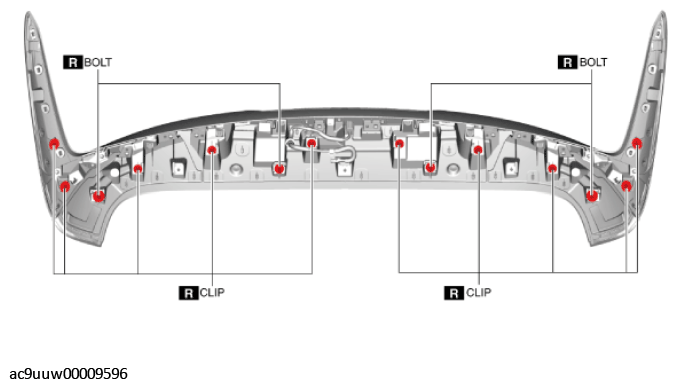

    1. Replace the clips and bolts shown in the figure with new ones.
      G11431196Courtesy of MAZDA MOTORS CORP.

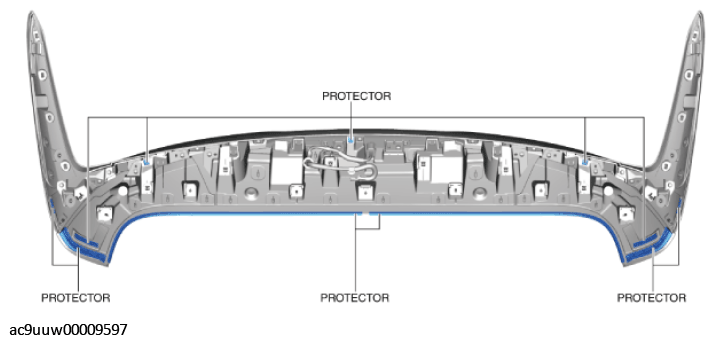

    2. If the protector is damaged, replace the part that is damaged with a new protector.
    G11431197Courtesy of MAZDA MOTORS CORP.
  2. If a liftgate spoiler clip has been damaged, perform the following procedure:

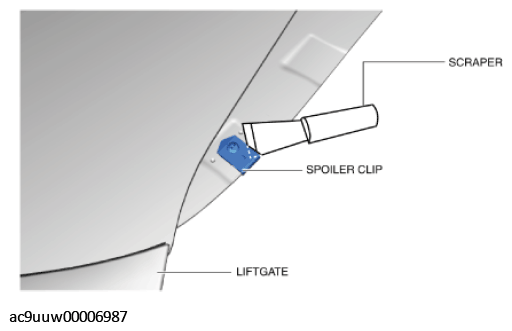

    1. Using a scraper, peel off the spoiler clip from the liftgate.
      NOTE:
      • If double-sided adhesive tape remains on the liftgate, warm the tape using a heat gun and then remove it using a resin spatula.
      G11431198Courtesy of MAZDA MOTORS CORP.
    2. Remove any grease and dirt from the spoiler clip affixing area on the liftgate.
    3. Peel off the backing of the double-sided adhesive tape.

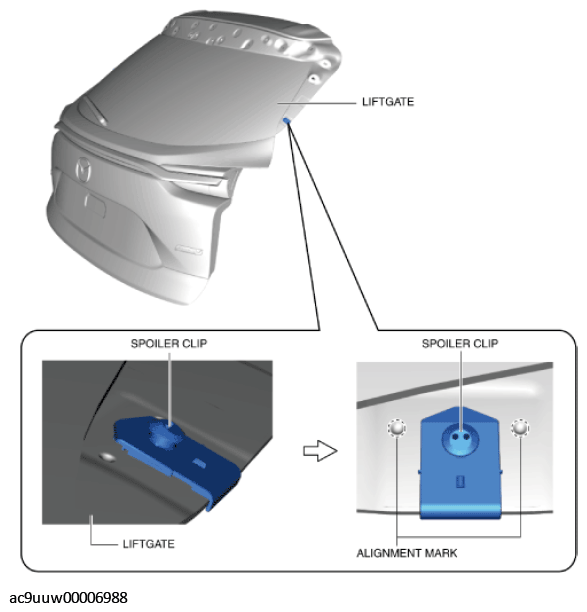

    4. While holding the spoiler clip flange against the hem of the liftgate, affix it between the alignment marks shown in the figure.
      G11431199Courtesy of MAZDA MOTORS CORP.
    5. Press the contact point using fingers and apply pressure to the spoiler clip to affix it to the liftgate.

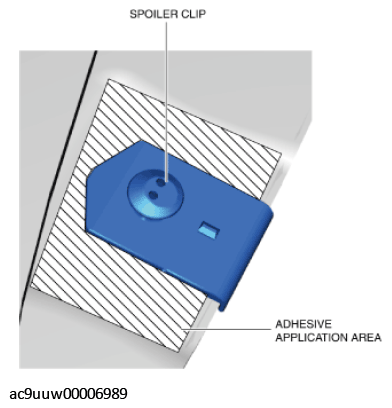

    6. Apply adhesive to the area shown in the figure.
    G11431200Courtesy of MAZDA MOTORS CORP.
    • Use Pando 156A-type adhesive agent or equivalent.
    • Follow the instructions for the product being used to determine the adhesive drying time.
  3. Install the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
  4. Install the side spoiler. (See SIDE SPOILER INSTALLATION .)

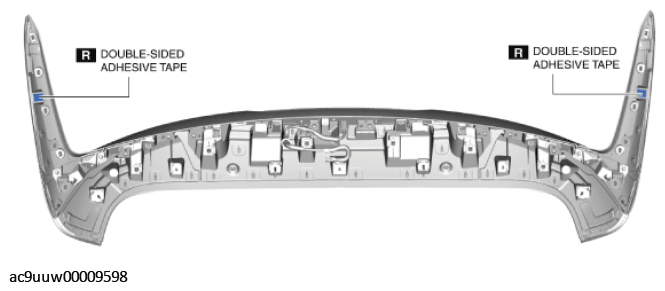

  5. Peel off the backing of the double-sided adhesive tape.
    G11431201Courtesy of MAZDA MOTORS CORP.

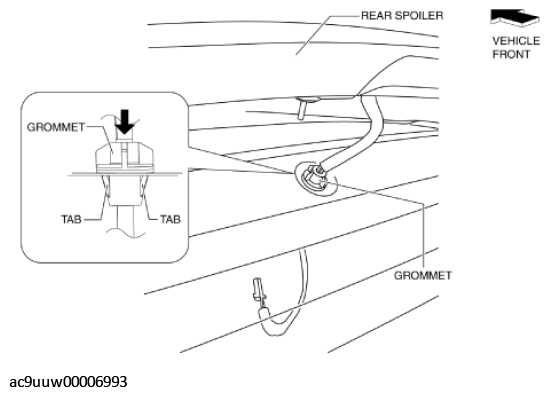

  6. Install the grommet of the high-mount brake light wiring harness.
    G11431202Courtesy of MAZDA MOTORS CORP.

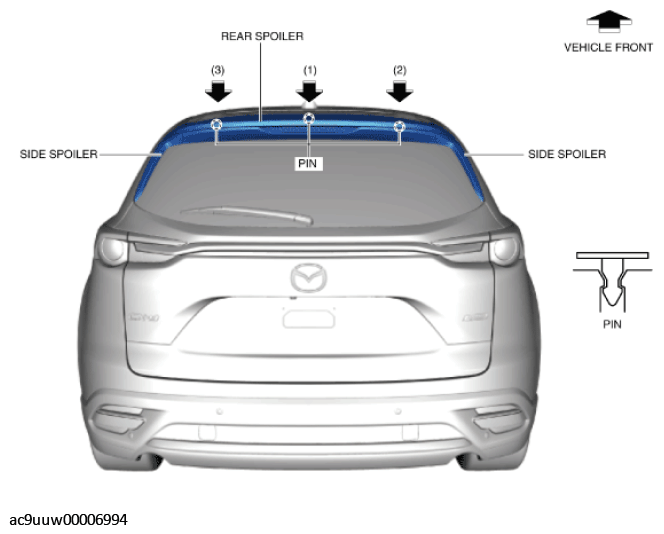

  7. Press in the rear spoiler in the direction of the arrows shown in the figure and install the pins to the liftgate.
    G11431203Courtesy of MAZDA MOTORS CORP.

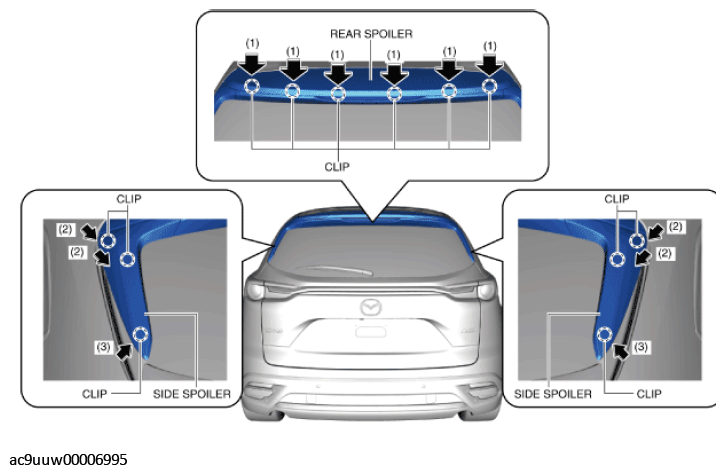

  8. Press in the rear spoiler in the direction of the arrows shown in the figure and install the clips to the liftgate.
    G11431204Courtesy of MAZDA MOTORS CORP.

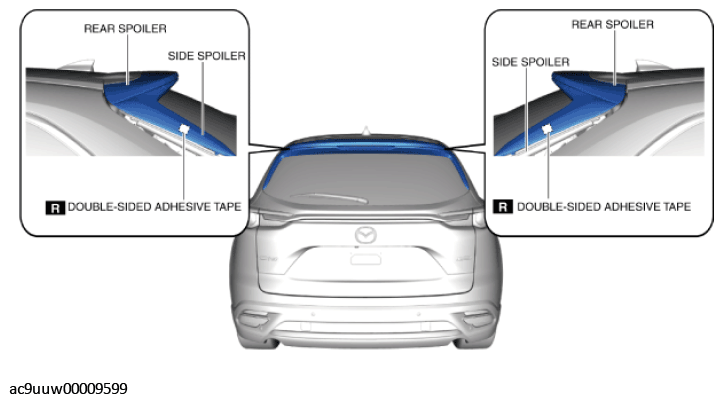

  9. Press the side spoiler to adhere the double-sided adhesive tape.
    G11431205Courtesy of MAZDA MOTORS CORP.

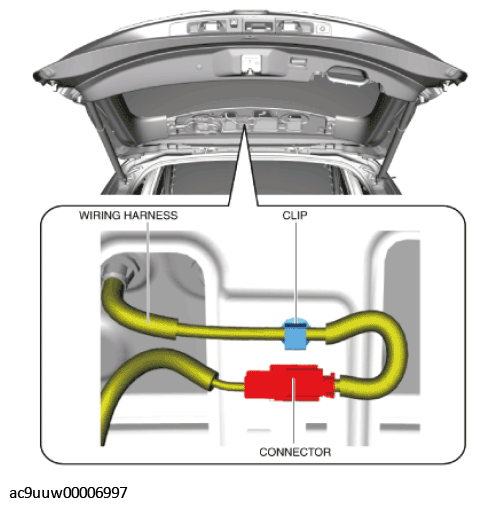

  10. Install the wiring harness to the clip.
    G11431206Courtesy of MAZDA MOTORS CORP.
  11. Connect the connector.

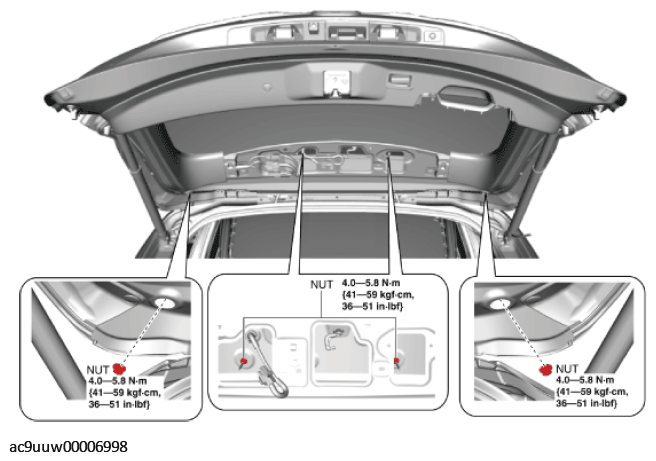

  12. Install the nuts.
    Fig 1: Liftgate Nuts With Torque Specification
    G11431207Courtesy of MAZDA MOTORS CORP.

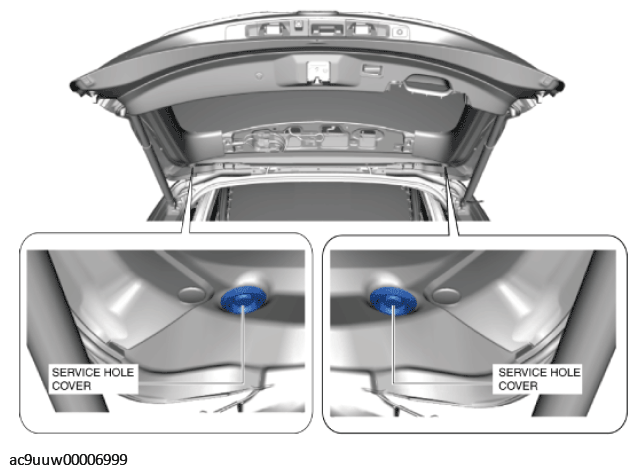

  13. Install the service hole covers.
    G11431208Courtesy of MAZDA MOTORS CORP.
  14. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  15. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
