Plate Removal/Installation: AWD

  1. Lift up the vehicle.
  2. Remove the bolt and fasteners.

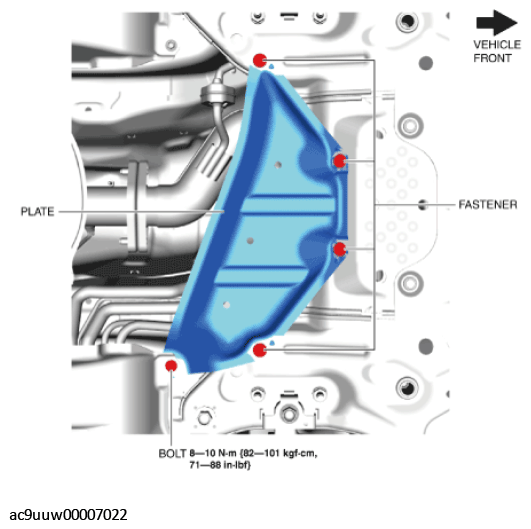

    Fig 1: Plate Bolt With Torque Specification (AWD)
    G11431129Courtesy of MAZDA MOTORS CORP.
  3. Remove the plate.
  4. Install in the reverse order of removal.
