Plate Removal/Installation: 2WD

  1. Lift up the vehicle.
  2. Remove the bolts and fasteners.

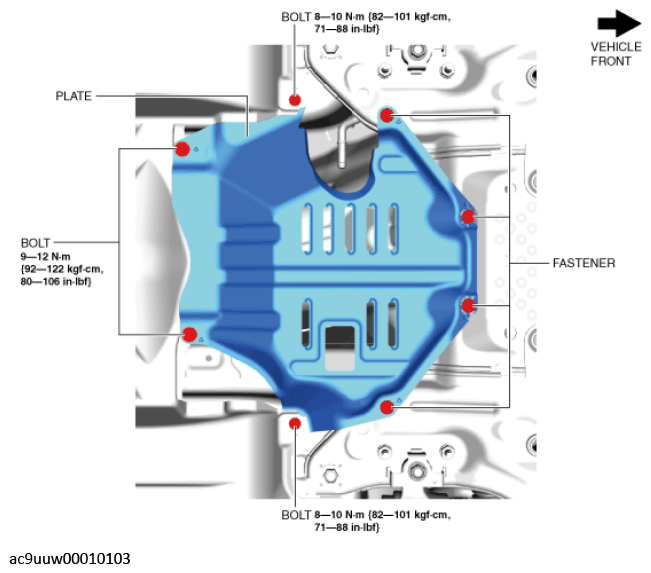

    Fig 1: Plate Bolts With Torque Specification (2WD)
    G12266156Courtesy of MAZDA MOTORS CORP.
  3. Remove the plate.
  4. Install in the reverse order of removal.
