Front Splash Shield Removal/Installation: LH

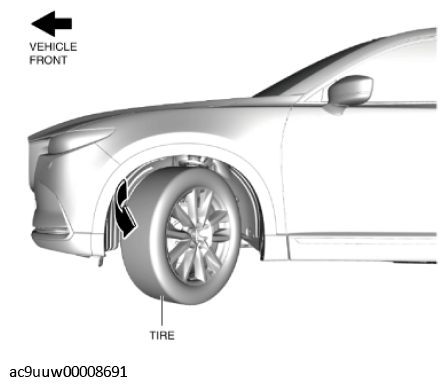

  1. Turn the steering wheel in the direction of the arrow shown in the figure so that the front side of the tire is facing outward.
    G11431105Courtesy of MAZDA MOTORS CORP.

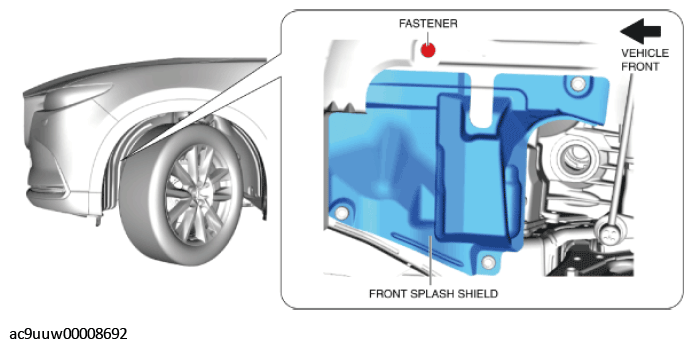

  2. Remove the fastener from the front mudguard.
    G11431106Courtesy of MAZDA MOTORS CORP.

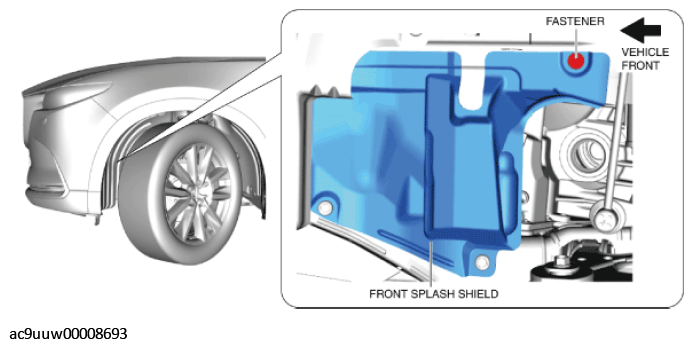

  3. Remove the fastener from the front splash shield.
    G11431107Courtesy of MAZDA MOTORS CORP.

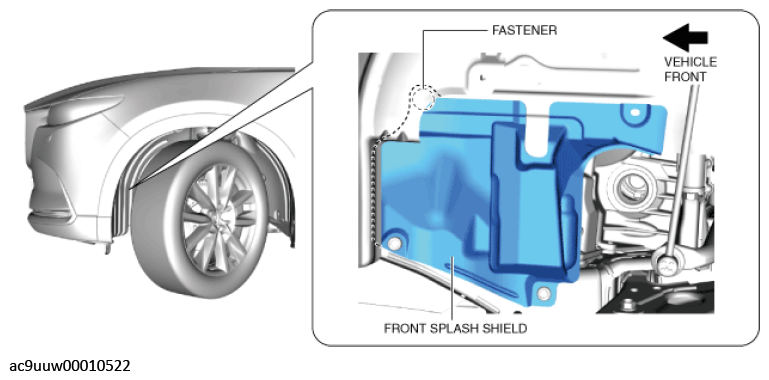

  4. Remove the fastener from the front splash shield.
    G12266136Courtesy of MAZDA MOTORS CORP.

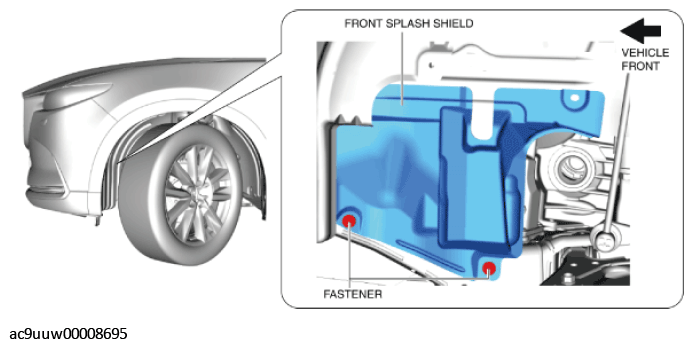

  5. Remove the fasteners from the front splash shield.
    G11431109Courtesy of MAZDA MOTORS CORP.
  6. Remove the front splash shield.
  7. Install in the reverse order of removal.
