Liftgate Opener Switch Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (with power liftgate) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
    7. Rear finisher (See REAR FINISHER REMOVAL .)
    8. Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .)

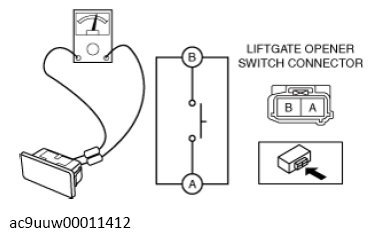

  3. Verify the continuity of liftgate opener switch terminals B and A.
G13701530Courtesy of MAZDA MOTORS CORP.
G13701531Courtesy of MAZDA MOTORS CORP.
