Passenger's Side: Notes

  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Pressure sensor (with pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)

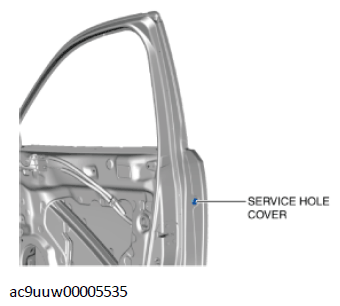

  4. Remove the service hole cover.
    G11432681Courtesy of MAZDA MOTORS CORP.

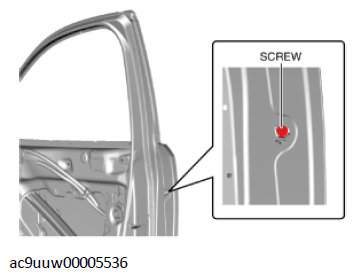

  5. Loosen the screw from the front outer handle bracket.
    G11432682Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

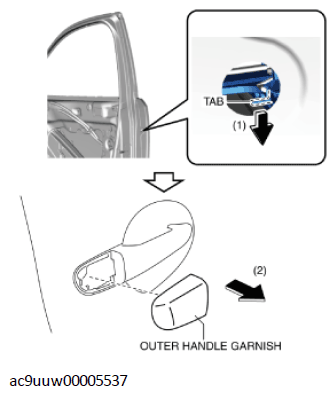

  6. While pressing the front outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the front outer handle bracket from the outer handle garnish.
    G11432683Courtesy of MAZDA MOTORS CORP.

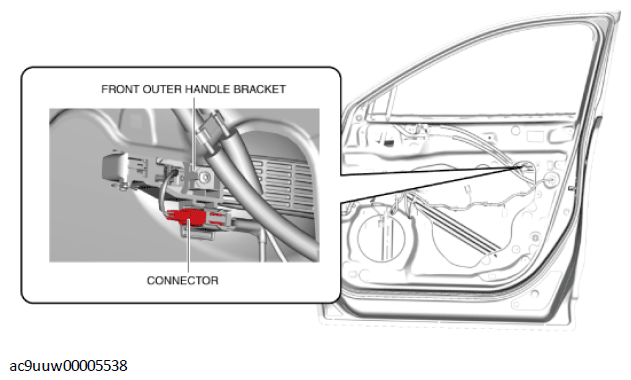

  7. Disconnect the keyless antenna connector. (with advanced keyless entry system)
    G11432684Courtesy of MAZDA MOTORS CORP.

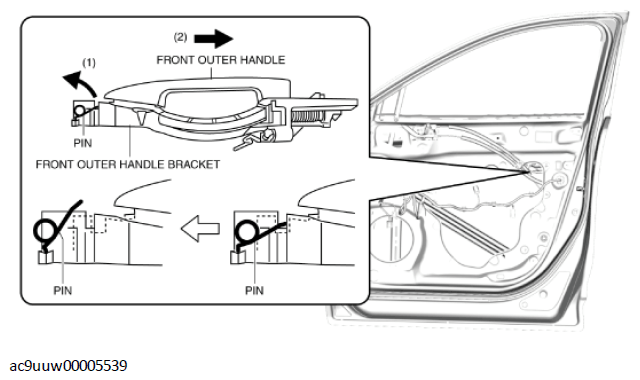

  8. While pulling the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) to detach the front outer handle bracket pin and the front outer handle.
    G11432685Courtesy of MAZDA MOTORS CORP.
  9. Remove the front outer handle in the direction of the arrow shown in the figure.
    G11472651Courtesy of MAZDA MOTORS CORP.

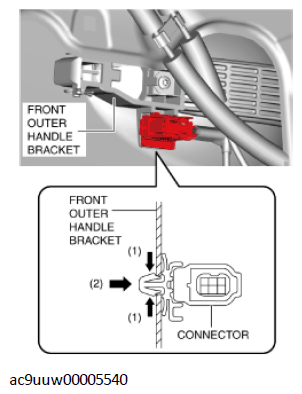

  10. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)
    G11432687Courtesy of MAZDA MOTORS CORP.

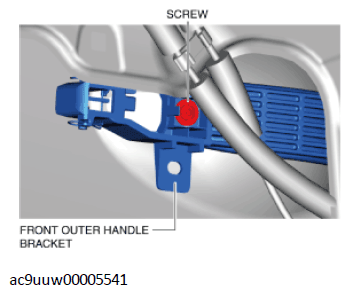

  11. Loosen the screw securing the front outer handle bracket.
    G11432688Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

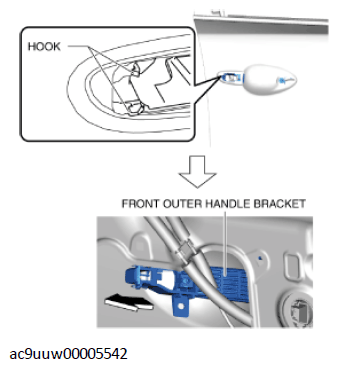

  12. Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hooks from the body.
    G11432689Courtesy of MAZDA MOTORS CORP.

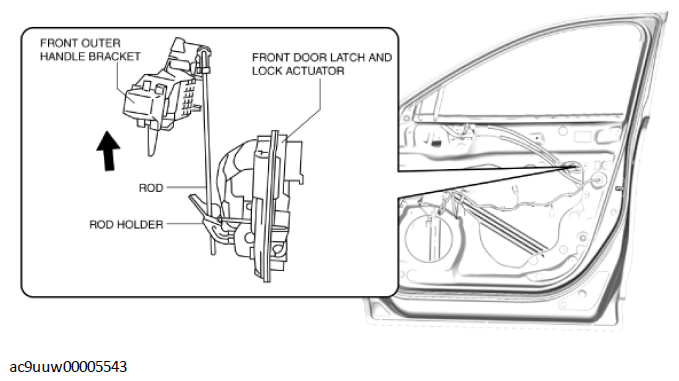

  13. Lift the front outer handle bracket in the direction of arrow shown in the figure to pull the rod out of the rod holder. (See FRONT OUTER HANDLE BRACKET INSTALLATION NOTE .)
    G11432690Courtesy of MAZDA MOTORS CORP.
  14. Remove the front outer handle bracket.
  15. Remove the handle seat from the body.
    G11432691Courtesy of MAZDA MOTORS CORP.
  16. Install in the reverse order of removal.
