Front Door Lock-Link Switch Inspection

1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
3. Remove the following parts:
   1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
   2. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
   3. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
   4. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
   5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
   6. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

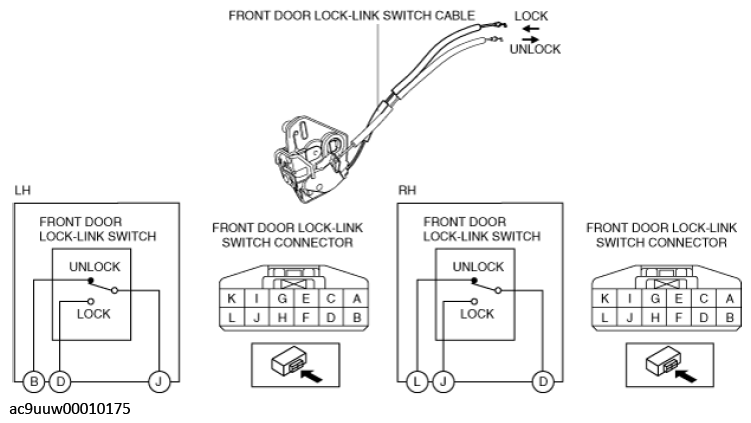

4. When the door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
