Front Door Key Cylinder Switch Lock-Side Inspection

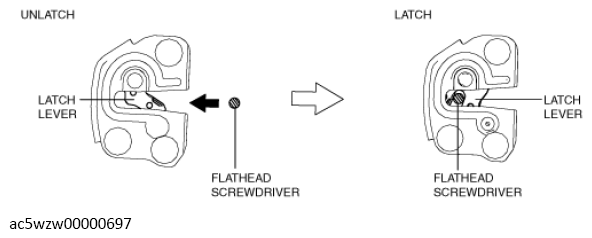

1. Press in the latch lever of the front door latch and lock actuator using a flat head screwdriver, and set it to the latched condition.

   Courtesy of MAZDA MOTORS CORP.

2. Rotate the front door key cylinder in the direction of the arrow until it stops to set the front door key cylinder switch to the locked condition.

   Courtesy of MAZDA MOTORS CORP.

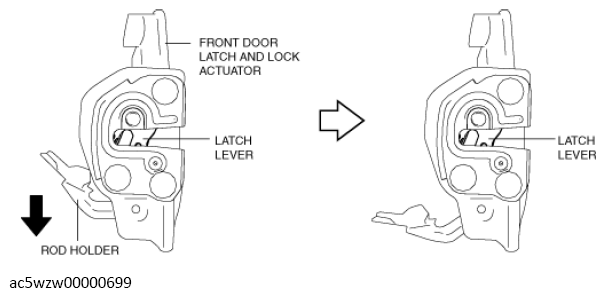

3. To verify that the switch is in the locked position, press down the rod holder in the direction of the arrow and verify that the latch lever does not move.

   Courtesy of MAZDA MOTORS CORP.

   NOTE:

   • If the latch lever moves, the front door key cylinder switch is not in the locked position. Repeat the procedure from Step  1.

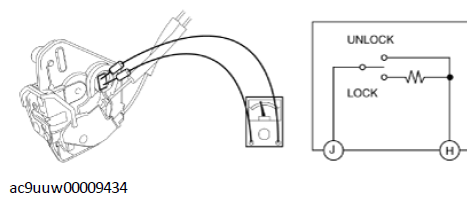

4. Verify that the continuity of the front door key cylinder is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
