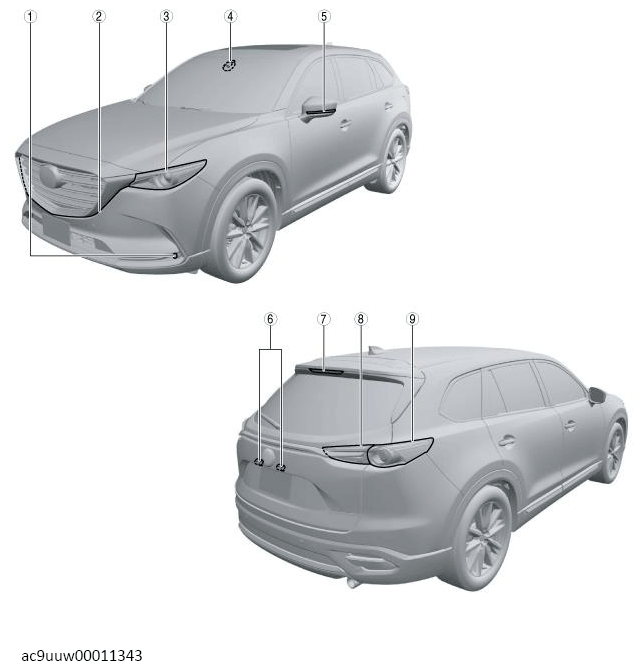

| 1 |
Front fog light (with front fog lights)
(See FRONT FOG LIGHT REMOVAL/INSTALLATION .)
(See FRONT FOG LIGHT INSPECTION .)
(See FRONT FOG LIGHT AIMING .) |
| 2 |
Signature wing illumination (with signature wing illumination)
(See SIGNATURE WING ILLUMINATION REMOVAL/INSTALLATION .)
(See SIGNATURE WING ILLUMINATION INSPECTION .)
(See SIGNATURE WING ILLUMINATION SHORT CORD REMOVAL/INSTALLATION .)
(See SIGNATURE WING ILLUMINATION SHORT CORD INSPECTION .) |
| 3 |
Front combination light
(See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
(See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .)
(See HEADLIGHT BULB REMOVAL/INSTALLATION .)
(See HEADLIGHT AIMING .)
(See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)
(See DRL (DAYTIME RUNNING LIGHT) BULB REMOVAL/INSTALLATION .)
(See PARKING LIGHT BULB REMOVAL/INSTALLATION .)
(See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
(See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 4 |
Auto light sensor (with auto light system)
(See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .) |
| 5 |
Side turn light
(See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
(See SIDE TURN LIGHT INSPECTION .) |
| 6 |
License plate lights
(See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .)
(See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .) |
| 7 |
High-mount brake light
(See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
(See HIGH-MOUNT BRAKE LIGHT SHORT-CORD REMOVAL/INSTALLATION .)
(See HIGH-MOUNT BRAKE LIGHT SHORT-CORD INSPECTION .) |
| 8 |
Liftgate light
(See LIFTGATE LIGHT REMOVAL/INSTALLATION .)
(See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .) |
| 9 |
Rear combination light
(See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
(See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .)
(See BRAKE LIGHT BULB REMOVAL/INSTALLATION .)
(See TAILLIGHT BULB REMOVAL/INSTALLATION .)
(See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
(See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION .)
(See REAR COMBINATION LIGHT SHORT-CORD INSPECTION .) |
