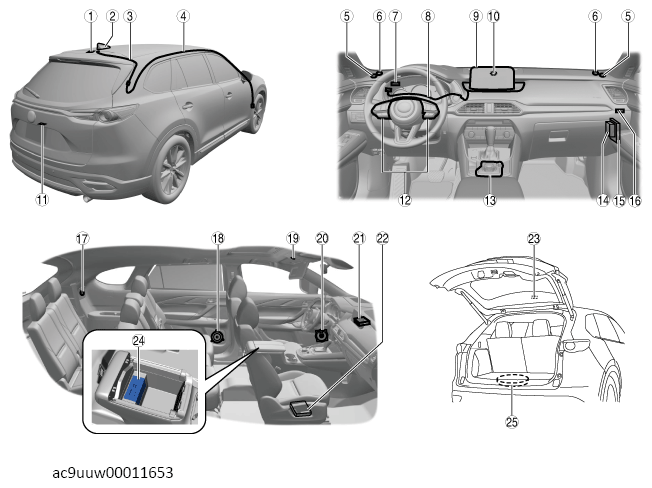

| 1 |
Condenser
(See CONDENSER REMOVAL/INSTALLATION .) |
| 2 |
Center roof antenna
(See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .) |
| 3 |
Antenna feeder No. 2
(See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 2 INSPECTION .) |
| 4 |
Antenna feeder No. 1
(See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 1 INSPECTION .) |
| 5 |
Tweeter
(See TWEETER REMOVAL/INSTALLATION .) (See TWEETER INSPECTION .) |
| 6 |
Front side speaker (with Bose®)
(See FRONT SIDE SPEAKER REMOVAL/INSTALLATION .) (See FRONT SIDE SPEAKER INSPECTION .) |
| 7 |
GPS antenna
(See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .) |
| 8 |
GPS antenna feeder
(See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER INSPECTION .) |
| 9 |
Center display
(See CENTER DISPLAY REMOVAL/INSTALLATION .)
(See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 10 |
Front center speaker (with Bose®)
(See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See FRONT CENTER SPEAKER INSPECTION .) |
| 11 |
Rear mount camera (with parking assist system)
(See REAR MOUNT CAMERA REMOVAL/INSTALLATION .)
(See REAR MOUNT CAMERA INSPECTION .) |
| 12 |
Steering switch
(See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .) |
| 13 |
Commander switch
(See COMMANDER SWITCH REMOVAL/INSTALLATION .) |
| 14 |
Tuner and amp unit (TAU) (Type-A)
(See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION [TYPE-A] .) Remote tuner (RT) (Type-B)
(See REMOTE TUNER (RT) REMOVAL/INSTALLATION [TYPE-B] .) (See REMOTE TUNER (RT) INSPECTION [TYPE B] .) |
| 15 |
Tuner and amp unit (TAU) bracket (Type-A)
(See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION .) |
| 16 |
AudioPilot® microphone (with Bose®)
(See AudioPilot® MICROPHONE REMOVAL/INSTALLATION .) |
| 17 |
Rear speaker (with Bose®)
(See REAR SPEAKER REMOVAL/INSTALLATION .)
(See REAR SPEAKER INSPECTION .) |
| 18 |
Rear door speaker
(See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .) |
| 19 |
Microphone
(See MICROPHONE REMOVAL/INSTALLATION .) |
| 20 |
Front door speaker
(See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .) |
| 21 |
Connectivity master unit (CMU)
(See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .)
(See CONNECTIVITY MASTER UNIT (CMU) INSPECTION [TYPE-B] .) (See Bluetooth® PAIRING PROCEDURE .)
(See MAINTENANCE MONITOR OPERATION PROCEDURE .) |
| 22 |
Audio amplifier (with audio amplifier)
(See AUDIO AMPLIFIER REMOVAL/INSTALLATION .) |
| 23 |
Antenna amplifier
(See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) |
| 24 |
Auxiliary jack/USB port/SD card slot hub (Type-A)
(See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .) USB port/SD card slot hub (Type-B)
(See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See USB PORT/SD CARD SLOT HUB INSPECTION .) |
| 25 |
Bass-box (with Bose *)
(See BASS-BOX REMOVAL/INSTALLATION .) |
