Audio Amplifier Removal/Installation

Slide the front seat rearward (RH).
Remove the bolts.

Fig 1: Audio Amplifier Component Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Slide the front seat forward (RH).
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the bolt.

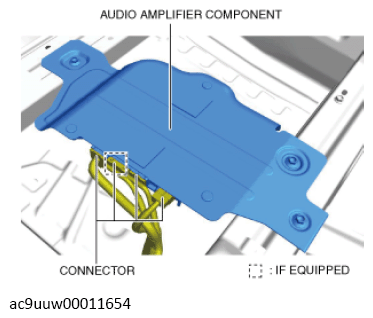

Fig 2: Audio Amplifier Component Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

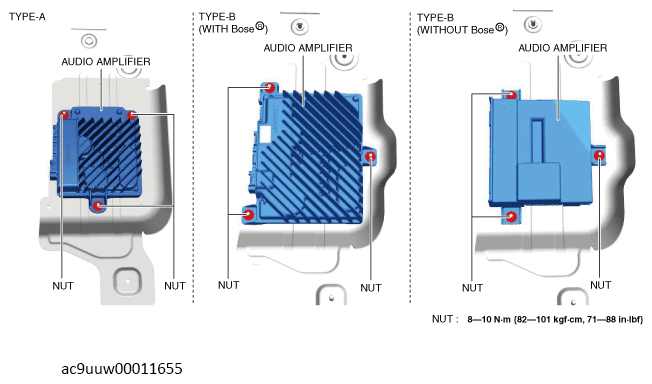

Fig 3: Audio Amplifier Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier.
Install in the reverse order of removal.
